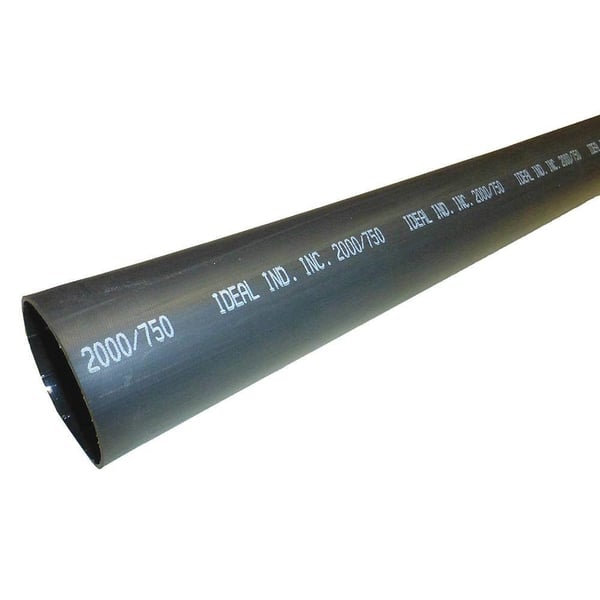

IDEAL® Thermo-Shrink® 46-358 Heat Shrink Tubing, 1-1/2 in ID Expanded, 0.47 in ID Recovered, 0.16 in THK Wall Recovered, 48 in L, Polyolefin, Black

Selected IDEAL® Thermo-Shrink® 46-358 Heat Shrink Tubing, 1-1/2 in ID Expanded, 0.47 in ID Recovered, 0.16 in THK Wall Recovered, 48 in L, Polyolefin, Black
IDEAL® Thermo-Shrink® 46-358 Heat Shrink Tubing, 1-1/2 in ID Expanded, 0.47 in ID Recovered, 0.16 in THK Wall Recovered, 48 in L, Polyolefin, Black

Documents

Features

  • TS-46 irradiated cross-linked polyolefin
  • Adhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applications
  • Maximum flame retardency, resist copper corrosion
  • 0.5% water absorption
  • 90 deg C continuous use
  • 600% min ultimate elongation
  • 25000 psi max secant modulus at 2% strain
  • 1.2 max specific gravity
  • 1013 ohm-cm min volume resistivity
  • 500 V/mil dielectric strength
  • 500% heat aging
  • Made of Cross-Linked Polyolefin

Specification

Inner Diameter Expanded
1-1/2 in
Inner Diameter Recovered
0.47 in
Length
48 in
Material
Cross-Linked Polyolefin
Minimum Order Qty
1
Order Interval
1
Catalog ID
IDE46-358
Color
Black
Voltage Rating
600 VAC
Shrink Ratio
12/31/1899 3:01:00 AM
Standard & Approvals
UL Listed, RoHS Complaint, Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA Insulation Thickness Requirements
Wire Size
2/0 AWG to 350 MCM
Wall Type
Heavy
Wall Thickness Recovered
0.16 in
Temperature Rating
-55 to 110 deg C
Shrink Temperature
120 - 250 deg C
