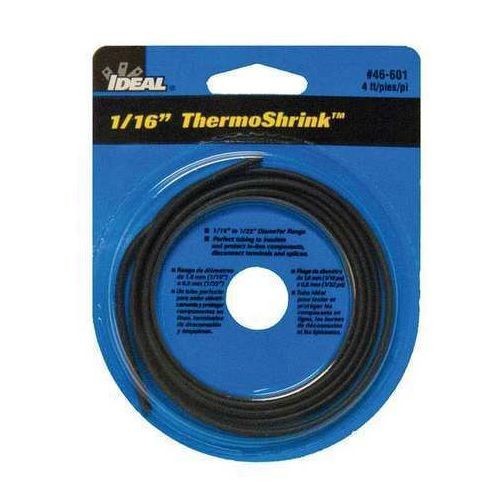

IDEAL® Thermo-Shrink® 46-601 Heat Shrink Tubing, 0.079 in ID Expanded, 0.031 in ID Recovered, 0.014 in THK Wall Recovered, 4 ft L, Polyolefin, Black
IDEAL® Thermo-Shrink® 46-601 Heat Shrink Tubing, 0.079 in ID Expanded, 0.031 in ID Recovered, 0.014 in THK Wall Recovered, 4 ft L, Polyolefin, Black
SKU: IDE46-601
Manufacturer Part Number: 46-601
UPC: 783250466016
Features
- Polyolefin material electrically insulates and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience
- Use to bundle wires for very flexible light duty harnesses
- Highly flame retardant and flexible
- Resistant to copper, chemicals, common fluids and solvents
- 600% elongation at break for ASTM D638 test method, 350% elongation of break after aging for UL 224 test method
- 30% eccentricity
- 1014 ohm-cm volume resistivity for ASTM D876 test method
- 0 +/- 5% longitudinal shrinkage
- 20 kV/mm dielectric strength for ASTM D150 test method
Specification
| Inner Diameter Expanded | 0.079 in |
|---|---|
| Inner Diameter Recovered | 0.031 in |
| Length | 4 ft |
| Material | Polyolefin |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | IDE46-601 |
| Color | Black |
| Shrink Temperature | 70 deg C |
| Temperature Rating | -55 to 125 deg C |
| Type | Flexible |
| Voltage Rating | 600 VAC |
| Wall Thickness Recovered | 0.014 in |
| Wall Type | Thin |
| Wire Size | 16 AWG |
| Standard & Approvals | UL Listed, C/US RU Listed, RoHS Complaint |
| Shrink Ratio | 12/31/1899 2:01:00 AM |
