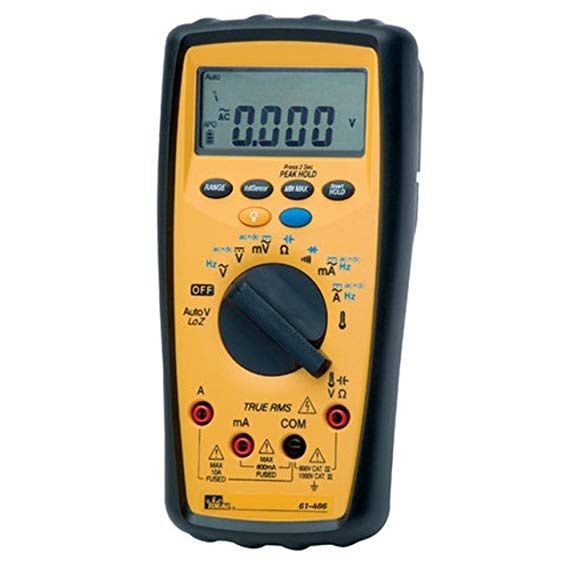

IDEAL® 61-486 480 Commercial Grade Digital Multimeter, 60 mV to 1000 VAC/VDC, 60 mA to 10 A AC/DC, 600 Ohm to 40 MOhm, Backlit Display

Selected IDEAL® 61-486 480 Commercial Grade Digital Multimeter, 60 mV to 1000 VAC/VDC, 60 mA to 10 A AC/DC, 600 Ohm to 40 MOhm, Backlit Display
IDEAL® 61-486 480 Commercial Grade Digital Multimeter, 60 mV to 1000 VAC/VDC, 60 mA to 10 A AC/DC, 600 Ohm to 40 MOhm, Backlit Display

Documents

Short Description

The 480 series multimeters accurately test and measure today's high-tech commercial and industrial circuits. These rugged models include the convenience of auto/ranging modes as well as an analog bar graph display. True rms readings ensure worry-free, accurate readings where harmonics exist.

Features

  • Measures temperature, peak hold, non-contact voltage, min/max, smart data hold, analog bar graph, frequency, capacitance
  • Auto AC/DC voltage detect with low impedance (auto - VLoZ)
  • True rms, low battery indication, auto power off, back-lit display
  • 6 to 1000 V AC+DC voltage, 60 to 600 mV AC/DC/AC+DC, 600 to 1000 V AC/DC Lo-Z voltage, 60 to 10 A AC/DC/AC+DC, 60 to 600 mA AC/DC/AC+DC
  • 600 ohm continuity, 1 uF to 10 mF capacitance, 100 to 100 kHz frequency range
  • 0.01 to 0.1 mV AC/DC/AC+DC, 0.1 to 1 V Lo-Z voltage, 0.001 to 0.01 A AC/DC/AC+DC, 0.1 to 0.01 M ohm resistance, 0.1 ohm continuity
  • 0.001 V diode, 0.001 uF to 0.01 mF capacitance, 0.01 to 0.01 kHz frequency resolution
  • 0.8% AC voltage, 1.2% AC mV, 0.08% DC mV, 1.2% AC current, 0.80% DC current, 0.80% resistance, 0.1% capacitance, 1% frequency, 1% temperature accuracy
  • 600/6 k/60 k/600 k/6 M/40 mOhm resistance
  • 0.001 to 1 VAC for 6 to 1000 VAC resolution

Specification

Frequency Rating
0 to 100 kHz
Minimum Order Qty
1
Order Interval
1
Accuracy
0.008
Amperage Rating
60 mA to 10 A AC/DC
Battery Type
Alkaline
Capacitance
1 nf to 10 mf
Catalog ID
IDE61-486
Dimensions
190 mm H x 94 mm W x 48 mm D
Diode Test
1.8 VAC, Silicon Diode
Display
Backlight
Peak Hold
+/-150 Digits
Resistance
600 Ohm to 40 MOhm
Resolution
0.001 to 1 VAC
Safety Rating
IEC 61010-1 600 VAC CAT IV
Series
486
Temperature Rating
-40 to 752 deg F
Type
Commercial Grade
Voltage Rating
60 mV to 1000 VAC/VDC
Includes
(1) 486 Commercial-Grade Digital Multimeter, (1) 9V Battery, (1) Set of Test Leads (TL-484) and (1) Operating Instructions
