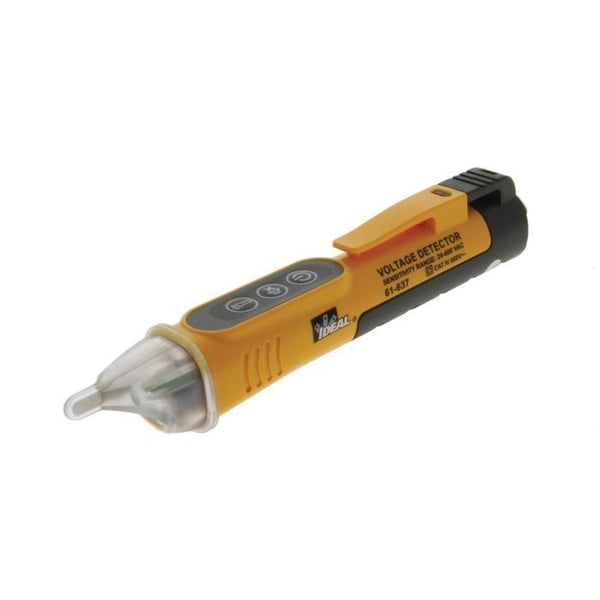

IDEAL® 61-637 Non-Contact Voltage Tester With Flashlight, Battery, 24 to 600 VAC Max Working

Selected 61-637IDEAL® 61-637 Non-Contact Voltage Tester With Flashlight, Battery, 24 to 600 VAC Max Working
61-637IDEAL® 61-637 Non-Contact Voltage Tester With Flashlight, Battery, 24 to 600 VAC Max Working

Documents

Short Description

The IDEAL® 61-637 is Cat IV 600 VAC, UL Listed, single range non-contact Voltage Tester that automatically detects and indicates the presence of voltage within range of range of 24 to 600 VAC . The tester provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beep that increase in frequency as the voltage level increases. The tester is powered by two 1.5 V AAA batteries and features an in tip LED flash light, an audible disable function, a lanyard tie-off point, an auto power off function and a low battery indication.

Features

  • LED flashlight in tip operates independently of the tester functions and can be used to illuminate the work area
  • The flashlight will auto power off after 5 min
  • Audible notification disable the tester can be operated with a visual only indication of voltage when working in noise sensitive/noise restricted area with the simple press of a speaker button
  • After 10 min of inactivity (no button pressed and no signals detected), the tester will emit one long beep (approx 0.5 s) and then shut off
  • If the flashlight is on, it will be also shut off

Specification

Frequency Rating
50/60 Hz
Light Source
LED
Material
Plastic
PowerSupply
Battery
Type
Non-Contact
Standard & Approvals
RoHS Compliant, cULus Listed, CE Certified, RCM Certified, PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov, CISPR 22 3rd Edition. Class B/32/11, FCC 15. 107 Section 15.109 (g), ICES-003, EN 61326-2-2 Sec 6.4.2.101/55032, 47 CFR 15 B15.103, ANSI/UL/IEC EN 61010-1, Edition 3 (2015-07-15), IEC 61010-2-032 (2019-06)/61010-2-033 (2019-06)/61010-1, Edition 3 (2010-06) +AMD1 (2016-12)
Display Type
LED
Environmental Conditions
32 to 104 deg F Operating, 14 to 122 deg F Storage
EANUCC13
0783250810987
Distance Range
3.3 ft
Battery
(2) 1.5 V AAA Alkaline
Dimensions
6 in L x 1 in W x 1.1 in H
Maximum Working Voltage
24 to 600 VAC
