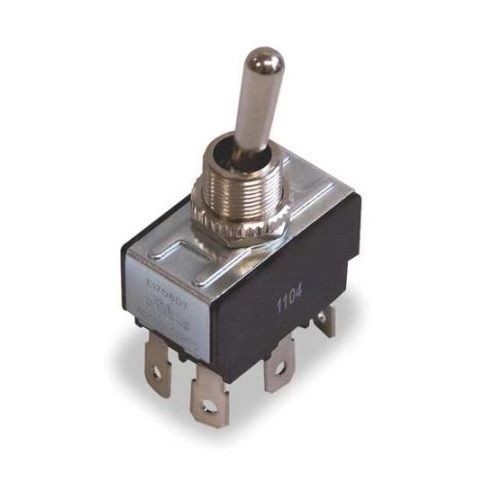

IDEAL® 774003 Heavy Duty Toggle Switch, 125/227 VAC, 20/10 A, 1-1/2 hp Power Rating, DPDT ON-OFF-ON Contact
IDEAL® 774003 Heavy Duty Toggle Switch, 125/227 VAC, 20/10 A, 1-1/2 hp Power Rating, DPDT ON-OFF-ON Contact
SKU: IDE774003
Manufacturer Part Number: 774003
UPC: 783250573493
Features
- Rugged long-wearing solid brass/nickel-plated bushings
- 1500 V dielectric strength
- 1/2 in hole mounting
- ON/OFF/ON (maintained)
- 6 screw terminal
- 1-1/2 hp at 125/250 VAC
Specification
| Mounting | Threaded |
|---|---|
| Number Of Poles | 2 |
| Operating Cycles | 100000 |
| Power Rating | 1-1/2 hp |
| Terminal Type | Screw |
| Type | Heavy Duty |
| Voltage Rating | 125/227 VAC |
| Application | For power tool and motor control switch |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL Recognized |
| Amperage Rating | 20/10 A |
| Dimensions | 1.3 in L x 0.76 in W x 0.8 in H |
| Actuator | Toggle |
| Contact Configuration | DPDT |
| Environmental Conditions | 32 - 185 deg F |
