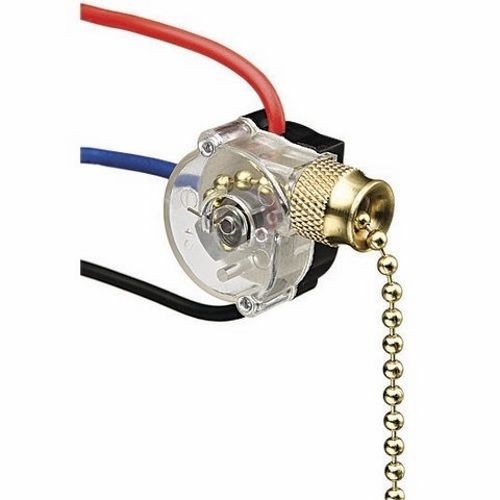

IDEAL® 774037 3-Speed 3-Wire Circuit Pull Chain Switch, 125/250 VAC, 6/3 A, SPTT/4-Position
IDEAL® 774037 3-Speed 3-Wire Circuit Pull Chain Switch, 125/250 VAC, 6/3 A, SPTT/4-Position
SKU: IDE774037
Manufacturer Part Number: 774037
UPC: 783250573691
Features
- Push in connectors for 18 AWG wire
- 6 in stripped wire
- 13/32 in diameter mounting hole
- 4 position -3 wire circuit
- OFF-ON(A)-ON(B)-ON(A+B) circuitry
- 6 A at 125 VAC, 3 A at 250 VAC voltage and current rating
Specification
| Number Of Poles | 1 |
|---|---|
| Type | 3-Speed |
| Voltage Rating | 125/250 VAC |
| Application | For ceiling fixtures, lamps and fans |
| Standard & Approvals | cULus Listed, CSA Certified, RoHS Complaint, UL Recognized |
| Amperage Rating | 6/3 A |
| Dimensions | 0.87 in L x 1.05 in W x 0.65 in H |
| Color | Brass |
| Connection | Wire Lead |
| Contact Configuration | SP3T |
