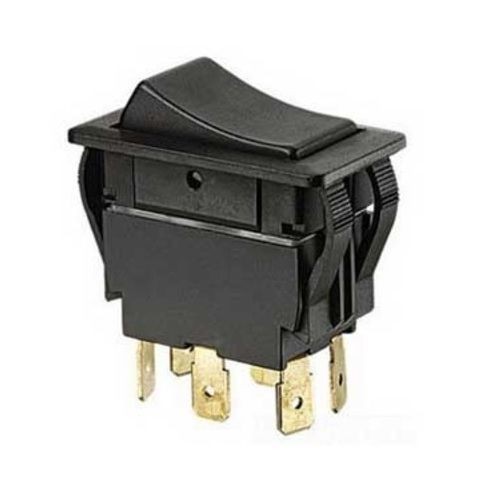

IDEAL® 774040BK Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, DPDT Contact, 2 Poles

Selected 774040BKIDEAL® 774040BK Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, DPDT Contact, 2 Poles
774040BKIDEAL® 774040BK Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, DPDT Contact, 2 Poles

Documents

Features

  • Moisture- and dust-resistant
  • Suitable for low-voltage DC applications
  • 32 to 185 deg F Operating Temperature
  • 0.83 in x 1.45 in Hole mounting
  • 2 hp at 110 to 250 VAC
  • 0.125 in Panel Thickness
  • (6) spade terminals
  • Full-Size

Specification

Mounting
Panel
Number Of Poles
2
Operational Mode
On/Off/On
Application
Commercial Appliances, Industrial Controls, Automotive and Marine Application
Standard & Approvals
CSA Certified, RU Listed, RoHS Compliant
Dimensions
1.7 in L x 0.97 in W x 1.09 in H
Color
Black
Connection
Spade
Contact Configuration
DPDT
Electrical Rating
125/277 VAC 20/15 A
