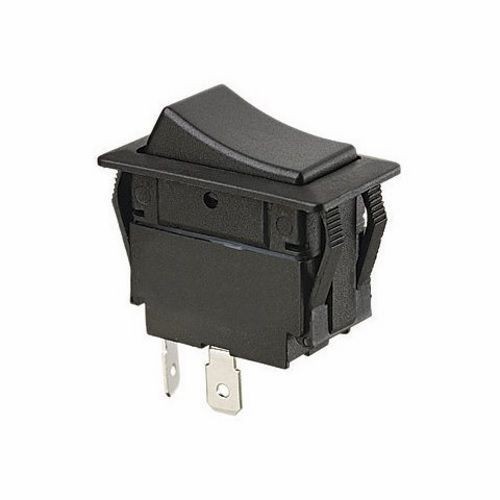

IDEAL® 774045 Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, SPST Contact, 1 Poles
IDEAL® 774045 Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, SPST Contact, 1 Poles
SKU: IDE774045
Manufacturer Part Number: 774045
UPC: 783250573752
Documents
Features
- Moisture- and dust-resistant
- Suitable for low-voltage DC applications
- 32 to 185 deg F Operating Temperature
- 0.83 in x 1.45 in Hole mounting
- 2 hp at 110 to 250 VAC
- 0.125 in Panel Thickness
- (2) spade terminals
- Full-Size
Specification
| Mounting | Panel |
|---|---|
| Number Of Poles | 1 |
| Operational Mode | On/Off |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | IDE774045 |
| Color | Black |
| Connection | Spade |
| Contact Configuration | SPST |
| Dimensions | 1.7 in L x 0.97 in W x 1.09 in H |
| Electrical Rating | 125/277 VAC 20/15 A |
| Standard & Approvals | CSA Certified, RU Listed, RoHS Compliant |
| Application | Automotive and Marine, Commercial Appliances, Industrial Controls |
