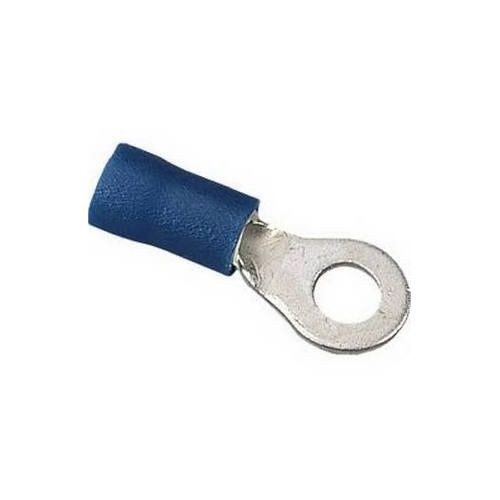

IDEAL® 83-2251 1-Hole Vinyl Insulated Ring Terminal, 16 to 14 AWG, 1/4 in Stud, Tin Plated Brass

Selected IDEAL® 83-2251 1-Hole Vinyl Insulated Ring Terminal, 16 to 14 AWG, 1/4 in Stud, Tin Plated Brass
IDEAL® 83-2251 1-Hole Vinyl Insulated Ring Terminal, 16 to 14 AWG, 1/4 in Stud, Tin Plated Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color-coded insulation and wire range stamped on terminal for easy identification
  • Vinyl insulated
  • Insulated
  • 0.433 in Hole Centre to Barrel

Specification

Material
Brass
Overall Length
1.055 in
Stud Size
1/4 in
Temperature Rating
75 deg C
Tongue Size
0.472 in W
Type
1-Hole Insulated
Voltage Rating
600 VAC
Standard & Approvals
UL, cUL Listed, RoHS Compliant
Conductor Size
16 to 14 AWG
Barrel Size
0.394 in L
Barrel Style
Beveled
Color Code
Blue
