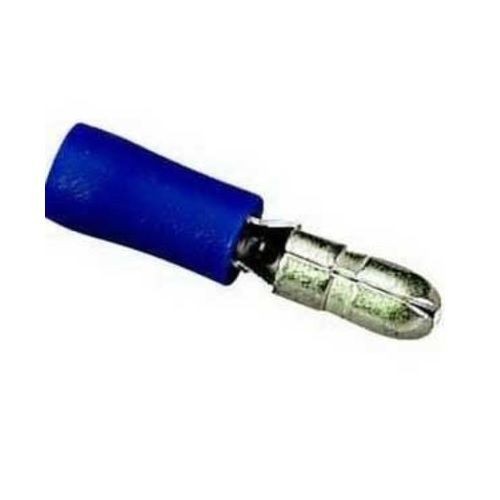

IDEAL® 83-8011 Insulated Vinyl Bullet Disconnect, 16 to 14 AWG, 0.157 in Dia Bullet, Brass, Blue

Selected IDEAL® 83-8011 Insulated Vinyl Bullet Disconnect, 16 to 14 AWG, 0.157 in Dia Bullet, Brass, Blue
IDEAL® 83-8011 Insulated Vinyl Bullet Disconnect, 16 to 14 AWG, 0.157 in Dia Bullet, Brass, Blue

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Vinyl Insulated

Specification

Material
Brass
Overall Length
0.846 in
Minimum Order Qty
25
Order Interval
25
Catalog ID
IDE83-8011
Color
Blue
Dimensions
0.846 in L
Finish
Tin Plated
Specifications
0.185 in Maximum Insulation Dia, 0.335 in L x 0.157 in W Bullet
Temperature Rating
75 deg C
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
774A C/US UL Listed, RoHS Compliant
