IDEAL® 83-9011 Bare/Non Insulated Butt Splice, 16 to 14 AWG Conductor, 0.591 in L, Shouldered Barrel, Brass

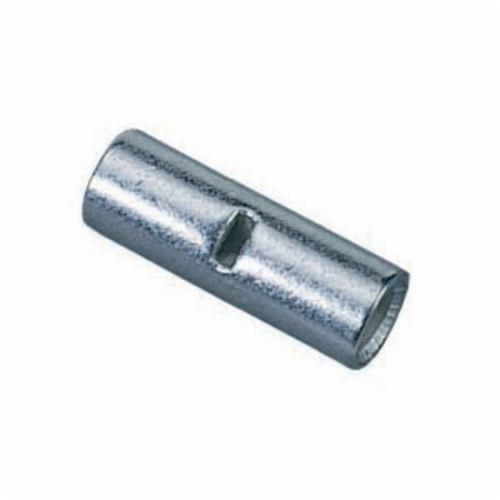

Selected 83-9041IDEAL® 83-9041 Bare/Non Insulated Butt Splice, 6 AWG Conductor, 1.024 in L, Shouldered Barrel, Brass
83-9041IDEAL® 83-9041 Bare/Non Insulated Butt Splice, 6 AWG Conductor, 1.024 in L, Shouldered Barrel, Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage

Features

  • Funnel entry barrel configuration
  • Butted seams prevent splitting under maximum pressure
  • Clearly marked wire and stud ranges
  • Color coded insulation
  • Tin-plated brass construction for corrosion resistance
  • Beveled barrel openings provide easy wire entry
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • 25 splices/pack

Specification

Length
0.591 in
Material
Brass
Minimum Order Qty
25
Order Interval
25
Barrel Size
0.154 in OD
Barrel Type
Butted/Brazed seam
Catalog ID
IDE83-9011
Color
Blue
Conductor Size
16 to 14 AWG
Finish
Tin Plated
Temperature Rating
221 deg F
Type
Non-Insulated
Voltage Rating
600 VAC
Standard & Approvals
RoHS Compliant
