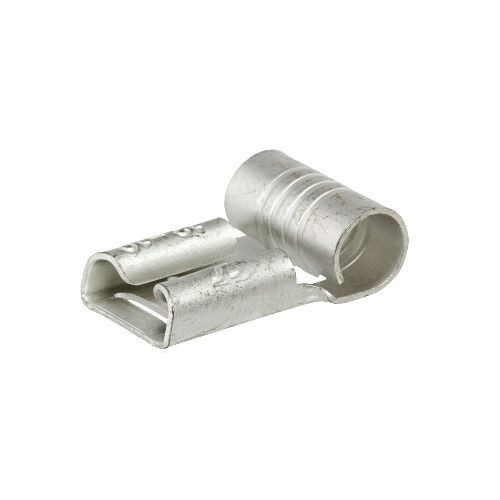

IDEAL® 83-9401 Flag Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass

Selected IDEAL® 83-9401 Flag Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass
IDEAL® 83-9401 Flag Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there’s a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Tin-plated brass construction for corrosion resistance
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance

Specification

Material
Brass
Minimum Order Qty
25
Order Interval
25
Barrel Type
Butted Seam
Catalog ID
IDE83-9401
Conductor Size
16 to 14 AWG
Dimensions
0.551 in L x 0.26 in W
Finish
Tin Plated
Tab Size
0.25 in W x 0.032 in T
Temperature Rating
221 deg F
Terminal Type
Crimp
Type
Non-Insulated
Voltage Rating
300 VAC
Standard & Approvals
RoHS Compliant
