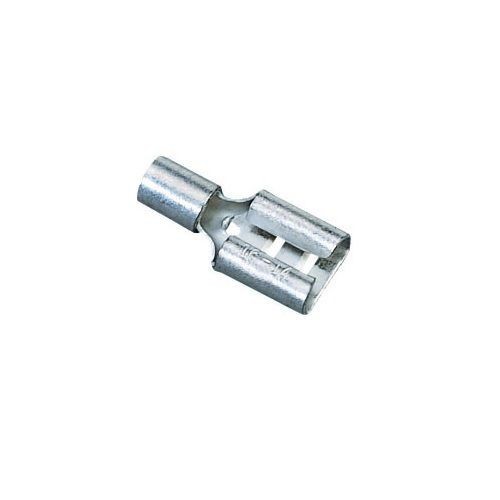

IDEAL® 83-9421 Bare Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.11 x 0.02 in Tab, Shouldered Barrel, Brass

Selected IDEAL® 83-9421 Bare Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.11 x 0.02 in Tab, Shouldered Barrel, Brass
IDEAL® 83-9421 Bare Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.11 x 0.02 in Tab, Shouldered Barrel, Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there’s a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Tin-plated brass construction for corrosion resistance
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Clearly marked wire and stud ranges
  • Color-coded insulation and wire range stamped on terminal for easy identification
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • 25 Pieces/Cartoon

Specification

Material
Brass
Tab Size
0.11 in W x 0.02 in T
Temperature Rating
221 deg F
Terminal Type
Crimp
Type
Non-Insulated
Voltage Rating
300 VAC
Standard & Approvals
RoHS Compliant
Conductor Size
16 to 14 AWG
Dimensions
0.63 in L x 0.126 in W
Barrel Type
Butted/Brazed
Finish
Tin Plated
