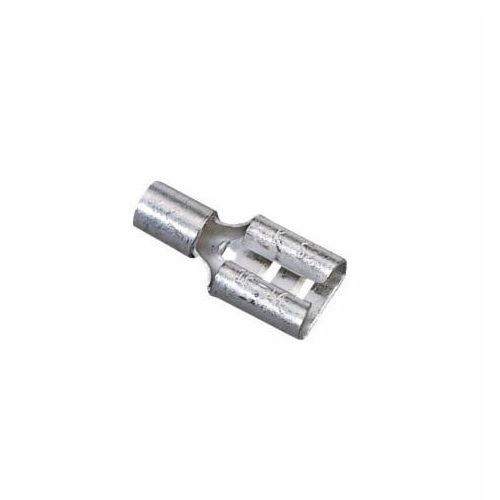

IDEAL® 83-9481 Bare Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Metallic

Selected IDEAL® 83-9481 Bare Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Metallic
IDEAL® 83-9481 Bare Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Metallic

Documents

Short Description

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Brazed or butted seams prevent splitting
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • Clearly marked wire and stud ranges
  • Color coded insulation

Specification

Material
Brass
Tab Size
0.25 x 0.032
Temperature Rating
221 deg F
Terminal Type
Crimp
Type
Bare/Non Insulated
Voltage Rating
300 VAC
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant
Conductor Size
16 to 14 AWG
Dimensions
0.63 in L x 0.26 in W
Barrel Type
Shouldered
Color
Metallic
Finish
Tin Plated
