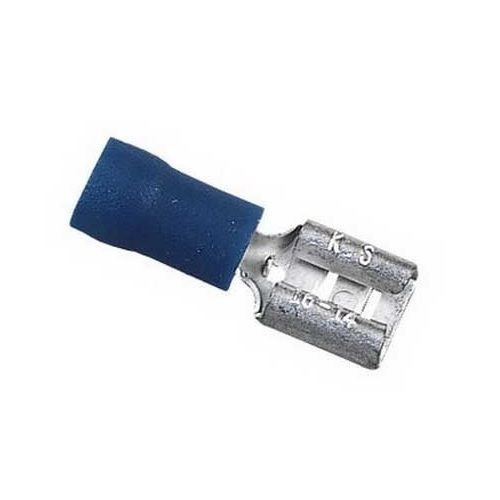

IDEAL® 83-9581 Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Blue

Selected IDEAL® 83-9581 Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Blue
IDEAL® 83-9581 Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Blue

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there’s a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Vinyl insulated
  • Tin-plated brass construction for corrosion resistance
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Clearly marked wire and stud ranges
  • Color-coded insulation and wire range stamped on terminal for easy identification
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • 25 Pieces/Cartoon

Specification

Material
Brass
Minimum Order Qty
25
Order Interval
25
Barrel Type
Butted/Brazed
Catalog ID
IDE83-9581
Color
Blue
Conductor Size
16 to 14 AWG
Dimensions
0.819 in L x 0.26 in W
Finish
Tin Plated
Specifications
0.185 in Maximum Insulation Dia
Tab Size
0.25 in W x 0.032 in T
Temperature Rating
75 deg C
Terminal Type
Crimp
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
cUL Listed, RoHS Compliant
