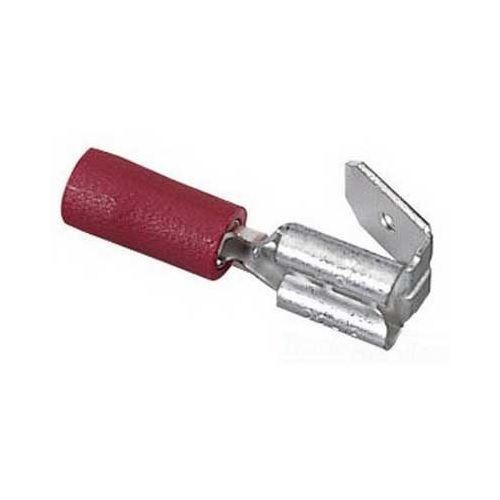

IDEAL® 83-9611 Insulated Vinyl Multi-Stack Disconnect, 12 to 18 AWG, 0.886 in L, Brass, Red

Selected IDEAL® 83-9611 Insulated Vinyl Multi-Stack Disconnect, 12 to 18 AWG, 0.886 in L, Brass, Red
IDEAL® 83-9611 Insulated Vinyl Multi-Stack Disconnect, 12 to 18 AWG, 0.886 in L, Brass, Red

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Vinyl insulation
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color coded insulation and wire range stamped on terminal for easy identification

Specification

Length
0.886 in
Material
Brass
Minimum Order Qty
25
Order Interval
25
Catalog ID
IDE83-9611
Color
Red
Conductor Size
12 to 18 AWG
Finish
Tin Plated
Specifications
0.15 in Maximum Insulation Dia, 0.25 in x 0.032 in Tab Size
Temperature Rating
75 deg C
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
cUL Listed, RoHS Compliant
