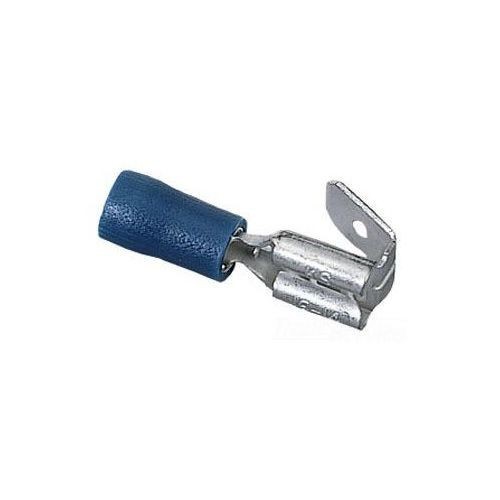

IDEAL® 83-9621 Insulated Vinyl Multi-Stack Disconnect, 16 to 14 AWG, 0.886 in L, Brass

Selected IDEAL® 83-9621 Insulated Vinyl Multi-Stack Disconnect, 16 to 14 AWG, 0.886 in L, Brass
IDEAL® 83-9621 Insulated Vinyl Multi-Stack Disconnect, 16 to 14 AWG, 0.886 in L, Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Vinyl insulation
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color coded insulation and wire range stamped on terminal for easy identification

Specification

Length
0.886 in
Material
Brass
Minimum Order Qty
25
Order Interval
25
Catalog ID
IDE83-9621
Color
Blue
Conductor Size
16 to 14 AWG
Finish
Tin Plated
Specifications
0.185 in Maximum Insulation Dia, 0.25 in x 0.032 in Tab Size
Temperature Rating
75 deg C
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
cUL Listed, RoHS Compliant
