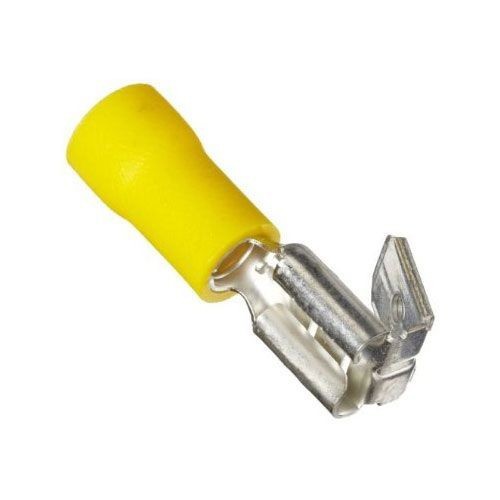

IDEAL® 83-9631 Insulated Vinyl Multi-Stack Disconnect, 12 to 10 AWG, 0.945 in L, Brass, Yellow

Selected IDEAL® 83-9631 Insulated Vinyl Multi-Stack Disconnect, 12 to 10 AWG, 0.945 in L, Brass, Yellow
IDEAL® 83-9631 Insulated Vinyl Multi-Stack Disconnect, 12 to 10 AWG, 0.945 in L, Brass, Yellow

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Vinyl insulation
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color coded insulation and wire range stamped on terminal for easy identification

Specification

Length
0.945 in
Material
Brass
Specifications
0.244 in Maximum Insulation Dia, 0.25 in x 0.032 in Tab Size
Temperature Rating
75 deg C
Type
Insulated
Voltage Rating
300 VAC
Conductor Size
12 to 10 AWG
Color
Yellow
Finish
Tin Plated
Standard & Approvals
cUL Listed, RoHS Compliant
