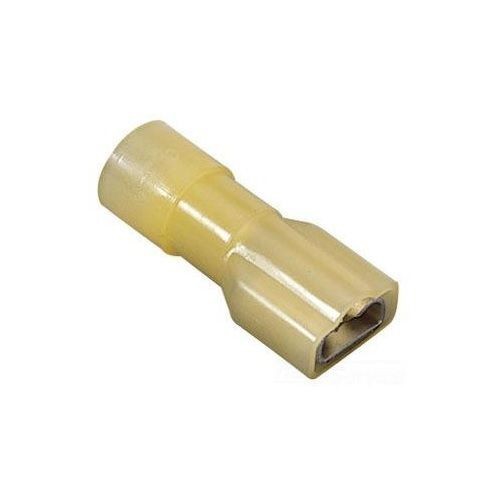

IDEAL® 83-9791 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Yellow

Selected IDEAL® 83-9791 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Yellow
IDEAL® 83-9791 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Yellow

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there’s a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Nylon Insulated
  • Tin-plated brass construction for corrosion resistance
  • Brazed or butted seams prevent splitting
  • Beveled barrel openings provide easy wire entry
  • Clearly marked wire and stud ranges
  • Color-coded insulation and wire range stamped on terminal for easy identification
  • Funnel entry insulators
  • 25 Pieces/Cartoon

Specification

Material
Brass
Specifications
0.244 in Maximum Insulation Dia
Tab Size
0.25 in W x 0.032 in T
Temperature Rating
221 deg F
Terminal Type
Crimp
Type
Insulated
Voltage Rating
300 VAC
Conductor Size
12 to 10 AWG
Dimensions
0.945 in L x 0.26 in W
Barrel Type
Butted/Brazed
Color
Yellow
Finish
Tin Plated
Standard & Approvals
cUL Listed, RoHS Compliant
