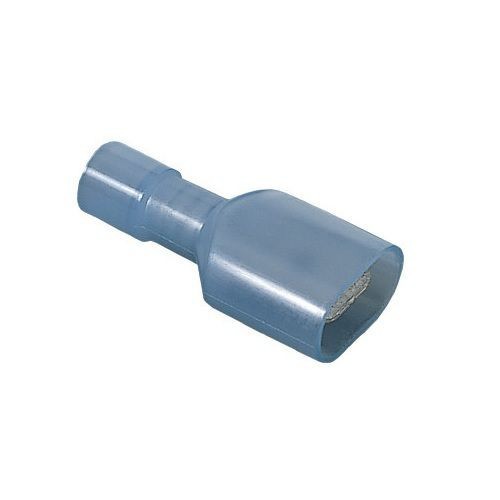

IDEAL® 83-9921 Fully Insulated Vinyl Male Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.32 in Tab, Shouldered Barrel, Brass/Nylon, Blue

Selected IDEAL® 83-9921 Fully Insulated Vinyl Male Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.32 in Tab, Shouldered Barrel, Brass/Nylon, Blue
IDEAL® 83-9921 Fully Insulated Vinyl Male Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.32 in Tab, Shouldered Barrel, Brass/Nylon, Blue

Features

  • Fully vinyl-insulated
  • Butted seam-construction prevents splitting under maximum pressure
  • Tin-plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color-coded insulation and wire range stamped on terminal for easy identification
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance

Specification

Material
Brass
Specifications
0.185 in Maximum Insulation Dia
Tab Size
0.25 in x 0.2 in
Temperature Rating
105 deg C
Terminal Type
Crimp
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
CUL Listed, RoHS Complaint
Conductor Size
16 to 14 AWG
Dimensions
0.945 in L
Barrel Type
Brazed Seam
Finish
Tin Plated
