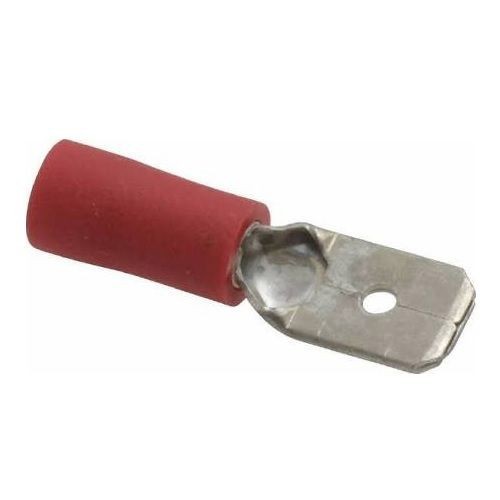

IDEAL® 83-9971 Insulated Vinyl Male Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.2 in Tab, Shouldered Barrel, Brass, Red
IDEAL® 83-9971 Insulated Vinyl Male Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.2 in Tab, Shouldered Barrel, Brass, Red
SKU: IDE83-9971
Manufacturer Part Number: 83-9971
UPC: 783250495450
Documents
Features
- Fully vinyl-insulated
- Butted seam-construction prevents splitting under maximum pressure
- Tin-plated brass construction for corrosion resistance
- Shouldered barrel insulation quickly positions terminal for proper crimping
- Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
- Color-coded insulation and wire range stamped on terminal for easy identification
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Specification
| Material | Brass |
|---|---|
| Specifications | 0.15 in Maximum Insulation Dia |
| Tab Size | 0.25 in x 0.2 in |
| Temperature Rating | 75 deg C |
| Terminal Type | Crimp |
| Type | Insulated |
| Voltage Rating | 300 VAC |
| Standard & Approvals | CUL Listed, RoHS Complaint |
| Conductor Size | 22 to 18 AWG |
| Dimensions | 0.858 in L |
| Barrel Type | Brazed Seam |
| Finish | Tin Plated |
