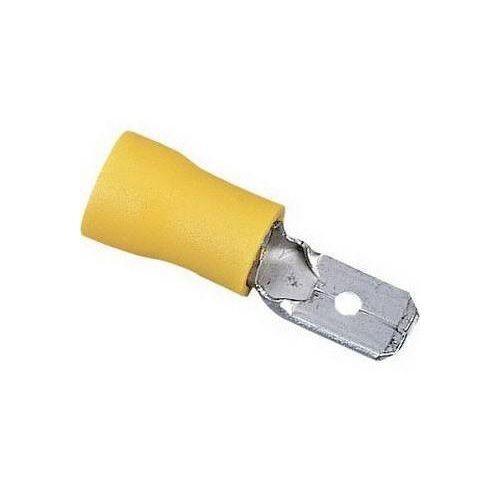

IDEAL® 83-9991 Insulated Male Vinyl Terminal Disconnect, 12 to 10 AWG, Tin Plated Brass

Selected IDEAL® 83-9991 Insulated Male Vinyl Terminal Disconnect, 12 to 10 AWG, Tin Plated Brass
IDEAL® 83-9991 Insulated Male Vinyl Terminal Disconnect, 12 to 10 AWG, Tin Plated Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • Clearly marked wire and stud ranges
  • Color-coded insulation
  • Butted seam expanded entry
  • Vinyl insulated
  • 0.25 x 0.032 in Tab
  • Tin Plated Brass

Specification

Material
Brass
Overall Length
0.945 in
Minimum Order Qty
25
Order Interval
25
Barrel Size
0.512 in L
Barrel Style
Beveled
Catalog ID
IDE83-9991
Color Code
Yellow
Conductor Size
12 to 10 AWG
Temperature Rating
75 deg C
Tongue Size
0.303 in L x 0.25 in W
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
UL, cUL Listed, RoHS Compliant
