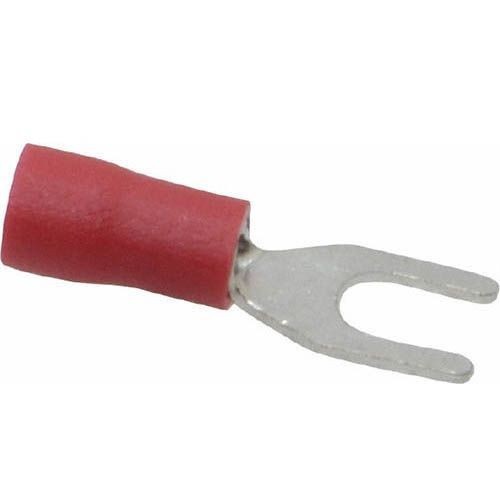

IDEAL® 84-7111 Insulated Vinyl Bare Spade Terminal, 22 to 18 AWG, 6 in Stud, Tin Plated Brass

Selected IDEAL® 84-7111 Insulated Vinyl Bare Spade Terminal, 22 to 18 AWG, 6 in Stud, Tin Plated Brass
IDEAL® 84-7111 Insulated Vinyl Bare Spade Terminal, 22 to 18 AWG, 6 in Stud, Tin Plated Brass

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color-coded insulation and wire range stamped on terminal for easy identification
  • Vinyl insulated
  • Bare spade terminal
  • 0.256 in Hole Centre to Barrel

Specification

Material
Brass
Overall Length
0.827 in
Minimum Order Qty
25
Order Interval
25
Barrel Size
0.394 in L
Catalog ID
IDE84-7111
Color Code
Red
Conductor Size
22 to 18 AWG
Stud Size
NO 6
Temperature Rating
75 deg C
Tongue Size
0.252 in W
Type
Insulated
Voltage Rating
600 VAC
Standard & Approvals
UL Listed, RoHS Compliant
