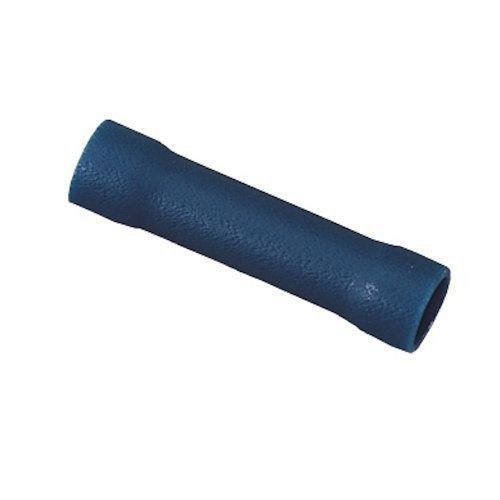

IDEAL® 84-9291 Insulated Vinyl Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Shouldered Barrel, Brass, Blue

Selected IDEAL® 84-9291 Insulated Vinyl Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Shouldered Barrel, Brass, Blue
IDEAL® 84-9291 Insulated Vinyl Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Shouldered Barrel, Brass, Blue

Documents

Short Description

The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Features

  • Vinyl insulated
  • Funnel entry barrel configuration
  • Butted seams prevent splitting under maximum pressure
  • Clearly marked wire and stud ranges
  • Color coded insulation
  • Tin-plated brass construction for corrosion resistance
  • Beveled barrel openings provide easy wire entry
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • 1000 Splice/Pack

Specification

Length
0.986 in
Material
Brass
Minimum Order Qty
1000
Order Interval
1000
Barrel Size
0.091 in ID
Catalog ID
IDE84-9291
Color
Blue
Conductor Size
16 to 14 AWG
Finish
Tin Plated
Specifications
0.117 in Maximum Insulation Dia
Temperature Rating
75 deg C
Type
Insulated
Voltage Rating
600 VAC
Barrel Type
Butted Seam
Standard & Approvals
cUL Listed, RoHS Compliant
