IDEAL® 85-365 RJ45 Feed-Thru Modular Plug With Crimp Termination

Selected IDEAL 85 365
IDEAL 85 365

Documents

Short Description

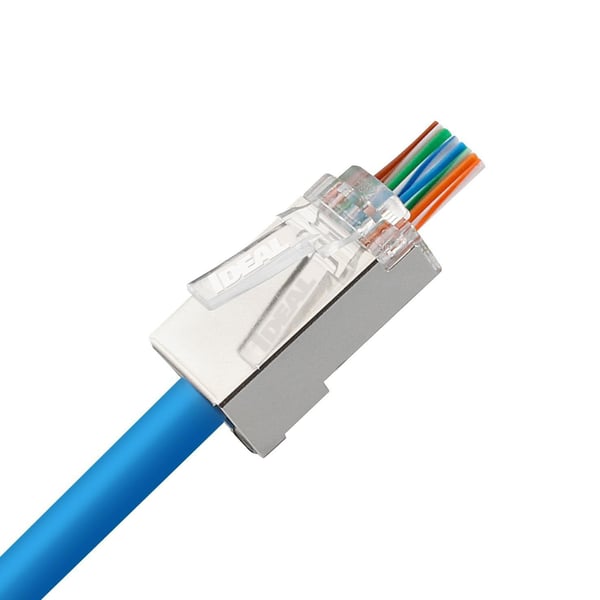

Shielded Feed-Thru CAT5e RJ45 connectors simplify assembly by allowing the user to verify the conductors are in the correct order before crimping the connector. This connector has an attached metal shell that is designed to provide a continuous path for the cable shielding to pass through the connector and into the device's shielded port. The connector has internal shield connection points on the top and bottom of the connector for cable foil or drain wire to make contact within the plug. The plugs are compatible with shielded or unshielded CAT5e cables with conductors that have a maximum insulated diameter of 0.041". The single piece design uses a feed-thru style cable preparation leaving about 1" of conductors exposed to feed-thru the plug prior to termination. An additional step requires the foil be folded back over the jacket, or drain wire wrapped, to ensure conductivity with the plug shield.

Features

  • Verify conductors are in the correct order prior to crimping
  • Feed-Thru, single-piece design simplifies connector to cable assembly for faster, simpler installation
  • Crimp Tool (30-495)
  • 8 position, 8 contact RJ-45 modular plug
  • 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
  • Consistent connections with fewer errors

Specification

Cable Outer Diameter
0.27 in
LAN Category
Cat 6a/6/5e
Conductor Size
24 AWG
Type
RJ45 Feed-Thru
Cable Type
Shielded
