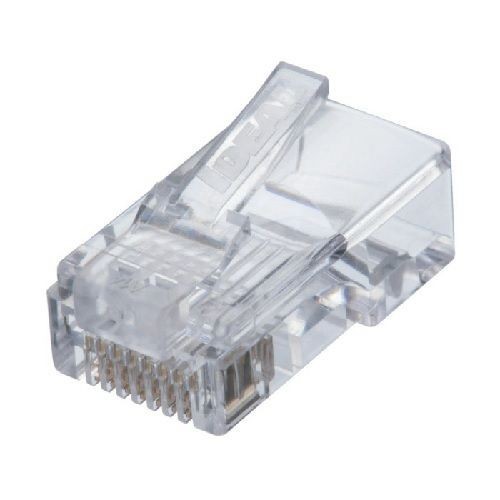

IDEAL® 85-376 8-Postion 8-Contact RJ45 Feed-Thru Modular Plug, Solid/Stranded Conductor, Plastic, 100 Ohm Impedance

Selected IDEAL® 85-376 8-Postion 8-Contact RJ45 Feed-Thru Modular Plug, Solid/Stranded Conductor, Plastic, 100 Ohm Impedance
IDEAL® 85-376 8-Postion 8-Contact RJ45 Feed-Thru Modular Plug, Solid/Stranded Conductor, Plastic, 100 Ohm Impedance

Documents

Short Description

The IDEAL® feed-thru cat 6 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.

Features

  • New feed-thru design simplifies connector to cable assembly
  • Flush cut of excess conductors minimizes inadvertent contact outside of the plug
  • Designed for best performance when used with the IDEAL® FT-45™ crimp tool (30-495)
  • 8-position, 8-contact RJ45 modular plug for cat 5e, 100 Ohm balanced twisted pair 250 MHz cables
  • 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles

Specification

Impedance
100 Ohm
LAN Category
Cat 6
Material
Plastic
Type
8-Postion 8-Contact RJ45 Feed-Thru
Conductor Size
24 to 23 AWG
Cable Outside Diameter
0.28 in
Cable Type
Twisted Pair
Color
Clear
Conductor Type
Solid/Stranded
