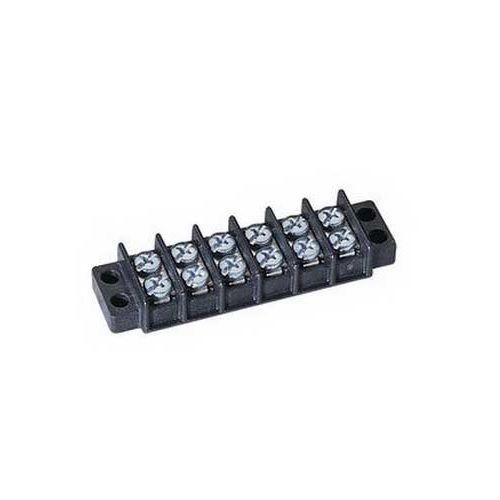

IDEAL® 89-208 1-Piece 1-Stage Heavy Duty Terminal Strip, 600 VAC, 30 A, 22 to 10 AWG Wire, Black

Selected IDEAL® 89-208 1-Piece 1-Stage Heavy Duty Terminal Strip, 600 VAC, 30 A, 22 to 10 AWG Wire, Black
IDEAL® 89-208 1-Piece 1-Stage Heavy Duty Terminal Strip, 600 VAC, 30 A, 22 to 10 AWG Wire, Black

Documents

Short Description

IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job

Features

  • Rugged base eliminates breakage, rugged polyester thermoplastic base for added durability
  • Corrosion resistant surface plates with NO 8 philslot screws
  • Heavy-duty, corrosion-resistant screws, surface plates and optional hardware
  • Accessory hardware provides a variety of termination options
  • Available cover helps prevent contact with live terminals
  • Zinc-plated steel screws
  • 8 number of circuits

Specification

Material
Polyester Thermoplastic Base
Mounting Type
Surface
Number of Terminals
8
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Catalog ID
IDE89-208
Center Spacing
0.562 in
Color
Black
Connection Type
Philslot Screw
Contact Form
Live Terminal
Dimensions
5.5 in L x 1.33 in W x 0.81 in H
Screw Size
8
Series
89-200
Temperature Rating
-40 to 260 deg F
Torque Rating
16 in lb
Type
Heavy-Duty One-Piece
Voltage Rating
600 VAC
Wire Size
22 to 10 AWG
Standard & Approvals
LR15364 CSA Certified, RJ Certified, RoHS Compliant, UL94V-0 Flammability Rating, UL E62622 Listed
