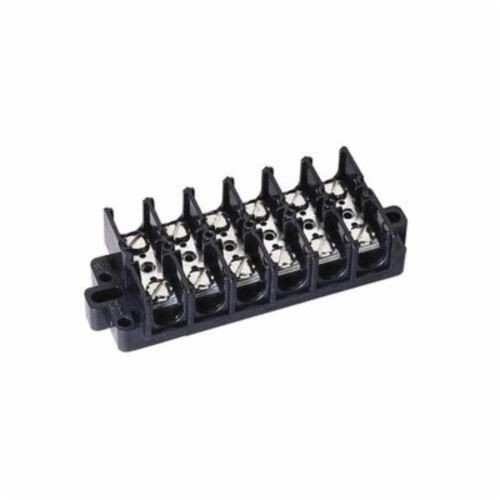

IDEAL® 89-512 1-Piece 1-Stage Heavy Duty Terminal Strip, 600 VAC, 60 A, 22 to 6 AWG Wire

Selected 89-512IDEAL® 89-506 1-Piece 1-Stage Heavy Duty Terminal Strip, 600 VAC, 60 A, 22 to 6 AWG Wire
89-512IDEAL® 89-506 1-Piece 1-Stage Heavy Duty Terminal Strip, 600 VAC, 60 A, 22 to 6 AWG Wire

Documents

Short Description

IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job

Features

  • Rugged base eliminates breakage, rugged polyester thermoplastic base for added durability
  • Corrosion resistant surface plates with NO 8 - 32 philslot screws
  • Heavy-duty, corrosion-resistant screws, surface plates and optional hardware
  • Accessory hardware provides a variety of termination options
  • Available cover helps prevent contact with live terminals
  • Nickel-plated brass terminal screws
  • 12 number of circuits
  • Clear/White cover

Specification

Material
Polyester Thermoplastic Base
Mounting Type
Surface
Number of Terminals
12
Screw Size
12
Series
89-500
Temperature Rating
-40 to 260 deg F
Torque Rating
20 in lb
Type
Heavy-Duty One-Piece
Voltage Rating
600 VAC
Wire Size
22 to 6 AWG
Standard & Approvals
LR15364 CSA Certified, RJ Certified, RoHS Compliant, UL94V-0 Flammability Rating, UL E62622 Listed
Amperage Rating
60 A
Dimensions
8-3/4 in L x 2 in W x 1-1/4 in H
Center Spacing
5/8 in
Connection Type
Philslot Screw
Contact Form
Live Terminal
