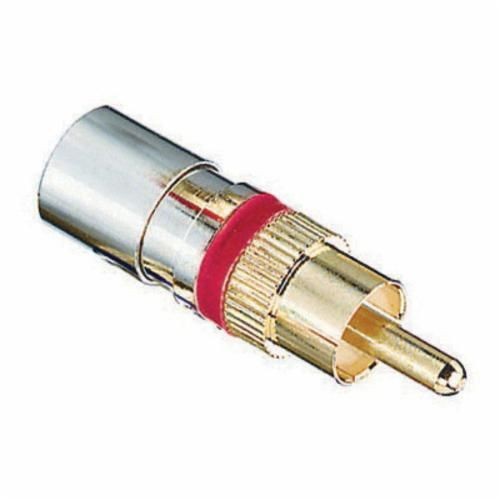

IDEAL® RTQ™ 89-570 Type RCA Compression Connector, 20 to 18 AWG Solid RG59 Cable

IDEAL® RTQ™ 89-570 Type RCA Compression Connector, 20 to 18 AWG Solid RG59 Cable
SKU: IDE89-570
Manufacturer Part Number: 89-570
UPC: 783250895700
Features
- OmniCONN™ RCA compression connectors install easily onto standard RG-6 and RG-59 cable
- Constructed of nickel plated brass and gold plated head
- Bandwidth up to 3 GHZ
- Compatible with 30-603 and 30-793 OmniSEAL™ compression tools
- 029 - 042 in conductor range
- 0.23 - 0.27 in diameter overall jacket
- 0.142 - 0.15 in diameter dielectric
- RG-59/59QRTQ™ cable
Specification
| Impedance | 75 Ohm |
|---|---|
| Material | Brass |
| Type | Type RCA |
| Cable Size | 20 - 18 AWG |
| Cable Type | RG-59 |
| Finish | Nickel Plated |
| Standard & Approvals | RoHS Compliant |
