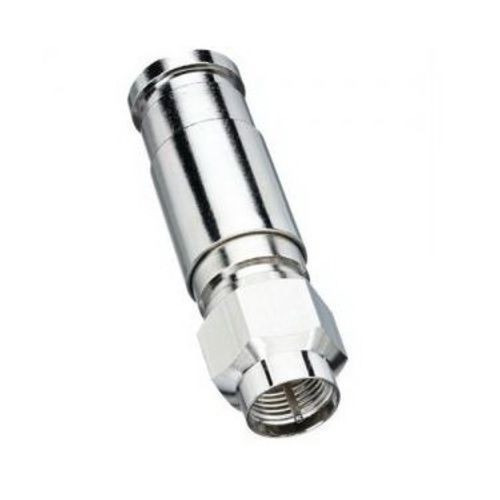

IDEAL® InSITE™ 92-212 F Type Compression Connector, 18 to 14 AWG Solid RG11 Cable
IDEAL® InSITE™ 92-212 F Type Compression Connector, 18 to 14 AWG Solid RG11 Cable
SKU: IDE92-212
Manufacturer Part Number: 92-212
UPC: 783250922123
Documents
Features
- Fits 60% regular shield cables
- Nickel-plated, brass construction for superior corrosion resistance
- Use 30-603 or 30-793 compression tools
- Standard 1/4 x 1/4 in cable prep/strip required (45-111)
- 0.04 to 0.066 in cable diameter
- 0.270 to 0.276 in dielectric diameter
- 0.34 to 0.348 in jacket diameter
- 11PLF connector model number
Specification
| Material | Brass |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Size | 18 to 14 AWG |
| Cable Type | RG-11 |
| Catalog ID | IDE92-212 |
| Color | Green |
| Finish | Nickel Plated |
| Type | F-Type |
| Application | For Indoor and outdoor use |
