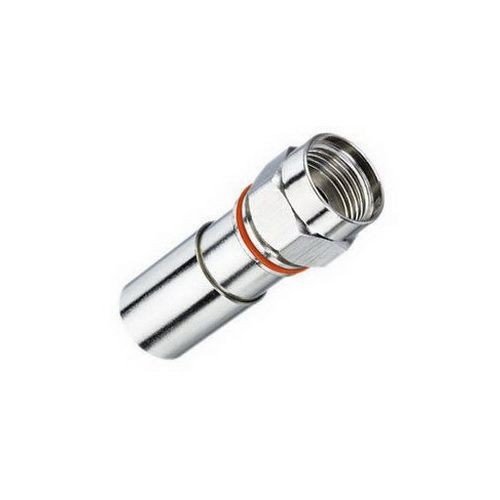

IDEAL® RTQ™ 92-610 F Type Compression Connector, RG59 Cable

Selected IDEAL® RTQ™ 92-610 F Type Compression Connector, RG59 Cable
IDEAL® RTQ™ 92-610 F Type Compression Connector, RG59 Cable

Documents

Short Description

IDEAL Compression Connectors are manufactured to meet the demands of the satellite and cable TV industry. All series of connectors are permanently connected when terminated with an IDEAL OmniSeal™ Compression Tool. All IDEAL compression connectors require a standard 1/4 x 1/4 in strip.

Features

  • InSite™ technology gives installers a large, 360 deg visual indication that the coax cable has been correctly and completely inserted
  • NJX™ offers a high performing, reliable economical solution for applications that do not require weatherproof connectivity
  • TLC™ Tool-Less Compression Connectors are the simplest, fastest and provides the lowest total cost of installing onto coax cable
  • Fits 60 percent rectangular/triangular/quadrant cable
  • Nickel-plated, brass-construction for superior corrosion-resistance
  • 0.23 - 0.27 in diameter overall jacket
  • 0.142 - 0.15 in diameter dielectric
  • RG-59 RTQ™ cable

Specification

Impedance
75 Ohm
Material
Brass
Type
Type F
Application
Termination of an F Type connection, compression style, RG59 and indoor and outdoor use
Cable Type
RG-59
Finish
Nickel Plated
Standard & Approvals
RoHS Compliant
