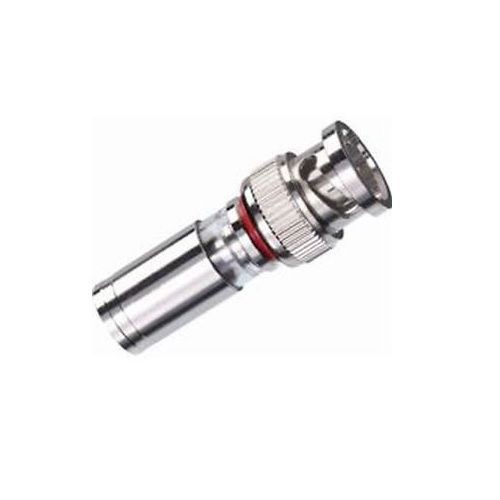

IDEAL® InSITE™ 92-693 Type BNC Compression Connector, 23 to 18 AWG Solid RG59 Cable, 5 MHz to 3 GHz
IDEAL® InSITE™ 92-693 Type BNC Compression Connector, 23 to 18 AWG Solid RG59 Cable, 5 MHz to 3 GHz
SKU: IDE92-693
Manufacturer Part Number: 92-693
UPC: 783250926930
Documents
Features
- New 360 deg clear site window for easy visual insertion verification before compressing the connector
- New internal design for better RF performance and easier cable insertion
- Nickel-plated, brass construction for superior corrosion resistance
- Moisture-inhibiting rear seal design
- Color-coded band for series identification
- Standard 1/4 x 1/4 in cable prep/strip required
- Use with 30-793, 30-603, 33-632 compression tools
- 0.023 to 0.04 in cable diameter
- 0.142 to 0.148 in dielectric diameter
- 0.23 to 0.25 in jacket diameter
- 59BNCRAIS connector model number
- InSITE™ 90 deg connector
Specification
| Frequency Rating | 5 MHz to 3 GHz |
|---|---|
| Material | Brass |
| Color | Red |
| Connection Type | 90 deg |
| Finish | Nickel Plated |
| Cable Type | RG-59 |
| Cable Size | 23 to 18 AWG |
| Application | For CCTV and broadband applications |
| Type | BNC Type |
