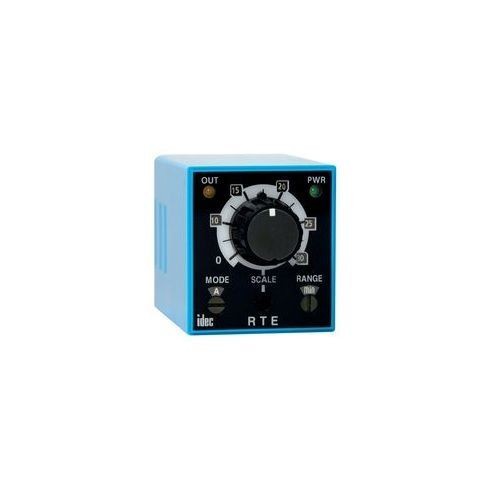

IDEC RTE-P1AD24 Solid-State Analog Timer, 0.1 s to 600 hr Setting, 24 VAC/VDC, 8 Pin, DPDT Contact
IDEC RTE-P1AD24 Solid-State Analog Timer, 0.1 s to 600 hr Setting, 24 VAC/VDC, 8 Pin, DPDT Contact
SKU: IDCRTE-P1AD24
Manufacturer Part Number: RTE-P1AD24
UPC: 783936914732
Documents
Features
- 1/6 hp at 120 VAC/1/3 hp at 240 VAC horsepower
- 60 Hz at 24/120/240 VAC/24 VDC
- Solid state CMOS Circuit
- 2000 VAC dielectric strength
- 20 time ranges and 10 timing functions
- Time delays up to 600 hr
- Space-saving package
- High repeat accuracy of +/- 0.2%
- ON and timing OUT LED indicators
- Standard 8 or 11-pin termination
- 2-form C-delayed output contacts
- On-delay, interval, cycle off, cycle on function group
Specification
| Mounting Type | PCB |
|---|---|
| Number of Pins | 8 |
| Operation Mode | Multi-Mode |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | IDCRTE-P1AD24 |
| Coil Voltage | 24 VAC/VDC |
| Contact Form | DPDT |
| Dimensions | 40 mm H x 36 mm W x 77.9 mm D |
| Enclosure Type | IP40 |
| Series | RTE |
| Temperature Rating | -20 to 65 deg C |
| Time Setting | 0.1 sec to 600 hr |
| Type | Solid State |
| Voltage Rating | 24 VAC/VDC |
| Standard & Approvals | CE Marked, TUV E9950913332316/BL960813332355, UL E66043 |
| Amperage Rating | 10 A |
| Horsepower | 1/6 hp/1/3 hp |
