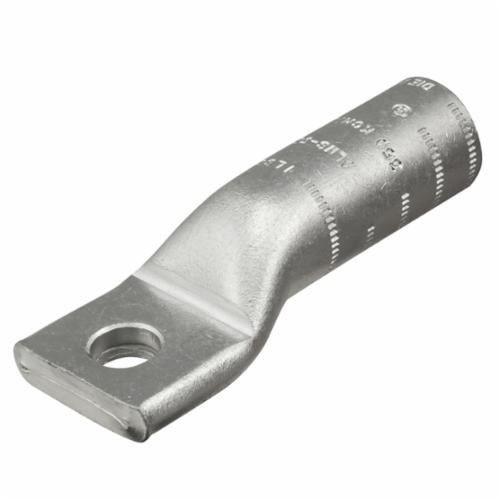

ILSCO® SureCrimp® ALNS-400-58 1-Hole Type ALNS Lug Compression Connector, 4/0 AWG to 400 kcmil Aluminum/Copper Conductor, Die Code: 472, 5/8 in Stud, Aluminum Alloy
ILSCO® SureCrimp® ALNS-400-58 1-Hole Type ALNS Lug Compression Connector, 4/0 AWG to 400 kcmil Aluminum/Copper Conductor, Die Code: 472, 5/8 in Stud, Aluminum Alloy
SKU: ILSALNS-400-58
Manufacturer Part Number: ALNS-400-58
UPC: 783669687675
Documents
Features
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
Specification
| Material | Aluminum Alloy |
|---|---|
| Mounting Hole Size | 0.656 in Dia |
| Overall Length | 4.42 |
| Specifications | 2.3655 in Strip Length |
| Temperature Rating | 90 deg C |
| Tongue Size | 1.485 in L x 1.623 in W x 0.426 in THK |
| Type | 1-Hole Type ALNS |
| Application | Terminating Connector |
| Standard & Approvals | ARRA, Buy American Act Compliant, UL 486A/B, 453G File No. E6207, CSA File No. LR29601 |
| Conductor Size | 4/0 AWG to 400 kcmil |
| Dimensions | 0.762 in ID x 1.188 in OD |
| Barrel Size | 2.303 in L |
| Barrel Style | Chamfered/Long |
| Color | Green |
| Conductor Type | Aluminum/Copper |
| Die Code | 472 |
| Stud Size | 5/8/2025 12:00:00 AM |
