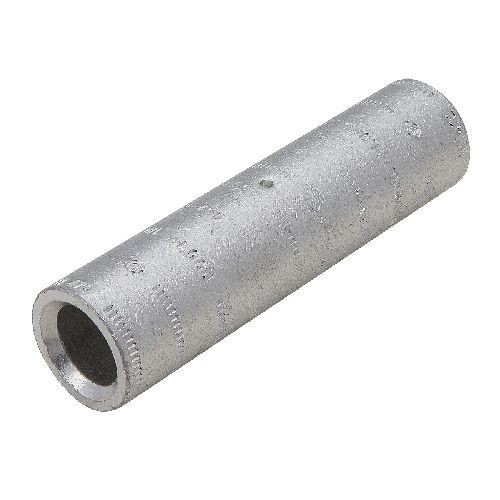

ILSCO® ClearChoice® SureCrimp® ASN-400 Type ASN Dual Rated Compression Sleeve, 4/0 AWG to 400 kcmil Aluminum/Copper Conductor, Die Code: 472, 4.606 in L, Aluminum Alloy
ILSCO® ClearChoice® SureCrimp® ASN-400 Type ASN Dual Rated Compression Sleeve, 4/0 AWG to 400 kcmil Aluminum/Copper Conductor, Die Code: 472, 4.606 in L, Aluminum Alloy
SKU: ILSASN-400
Manufacturer Part Number: ASN-400
UPC: 783669184839
Features
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Prefilled with DE-OX® prevents oxide from forming
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
Specification
| Length | 4.606 in |
|---|---|
| Material | Aluminum Alloy |
| Temperature Rating | 90 deg C |
| Type | Type ASN Dual Rated |
| Application | Splicer/Reducer Applications |
| Standard & Approvals | ARRA, Buy American Act Compliant, UL 486 A/B, 453G, File No. E6207, CSA File No. LR29601 |
| Conductor Size | 4/0 AWG to 400 kcmil |
| Dimensions | 0.762 in ID x 1.188 in OD |
| Color | Green |
| Conductor Type | Copper/Aluminum |
| Die Code | 472 |
| Finish | Electro Tin Plated |
