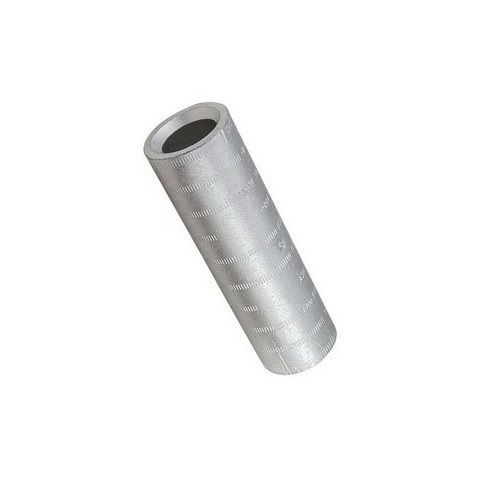

ILSCO® ClearChoice® ASN-6 Type ASN Dual Rated Compression Sleeve, 6 AWG Aluminum/Copper Conductor, Die Code: 346, 1.205 in L, Aluminum
ILSCO® ClearChoice® ASN-6 Type ASN Dual Rated Compression Sleeve, 6 AWG Aluminum/Copper Conductor, Die Code: 346, 1.205 in L, Aluminum
SKU: ILSASN-6
Manufacturer Part Number: ASN-6
UPC: 783669184723
Features
- Manufactured from high strength aluminum alloy and electro-tin plated
- Chamfered end barrel and pre-filled with DE-OX
- Proper high voltage spacings and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Roll marked barrel for easy identification and proper location of crimps
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion
- Prevents oxides from forming, promotes connector longevity and color coded end cap identifies the proper compression die
- Expanded wire size applicable when installed with specified dieless tools
- Permits inventories to be kept to a minimum
- 6 AWG expanded wire range
- 20/Pack
Specification
| Length | 1.205 in |
|---|---|
| Material | Aluminum |
| Series | ASN |
| Specifications | 0.194 in ID x 0.338 in OD |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 35 kV |
| Application | For Splicer/Reducer |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL 486A-B, UL E6207 453G Listed |
| Conductor Size | 6 AWG |
| Dimensions | 0.194 in ID x 0.338 in OD |
| Color | Gray |
| Conductor Type | Aluminum/Copper |
| Connector Type | Crimp |
| Die Code | 346 |
| Finish | Electro-Tin Plated |
