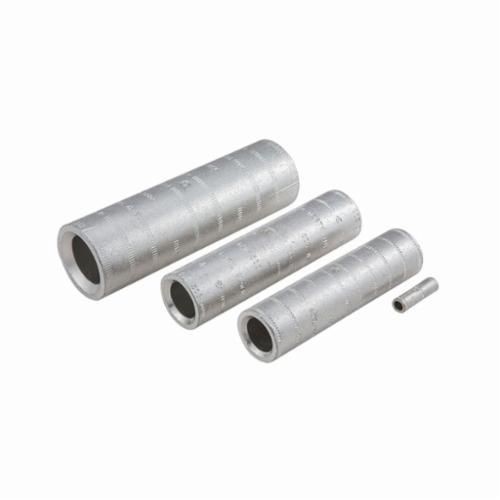

ILSCO® ClearChoice® ASN-600 Type ASN Dual Rated Compression Sleeve, 600 kcmil Aluminum/Copper Conductor, Die Code: 473, 5.37 in L, Aluminum
ILSCO® ClearChoice® ASN-600 Type ASN Dual Rated Compression Sleeve, 600 kcmil Aluminum/Copper Conductor, Die Code: 473, 5.37 in L, Aluminum
SKU: ILSASN-600
Manufacturer Part Number: ASN-600
UPC: 783669184853
Documents
Features
- Manufactured from high strength aluminium alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin-plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with DE-OX prevents oxide from forming
- Dual rated for aluminium and copper conductors
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 KV
- Expanded wire size applicable when installed with specified dieless tools
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance, identifies proper compression die, prevents oxides from forming and promotes connector longevity
- Permits inventories to be kept to a minimum
- Application versatility
- For use with aluminium and copper conductors
Specification
| Material | Aluminum |
|---|---|
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Conductor Size | 600 kcmil |
| Dimensions | 0.92 in ID x 1.44 in OD |
| Color | Black |
| Finish | Electro-Tin Plated |
| Die Code | 473 |
| Standard & Approvals | UL 486A/B 90 deg C Listed, UL 486A/B, UL E6207, CSA Certified, RoHS Compliant |
| Series | ASN |
| Length | 5.37 in |
