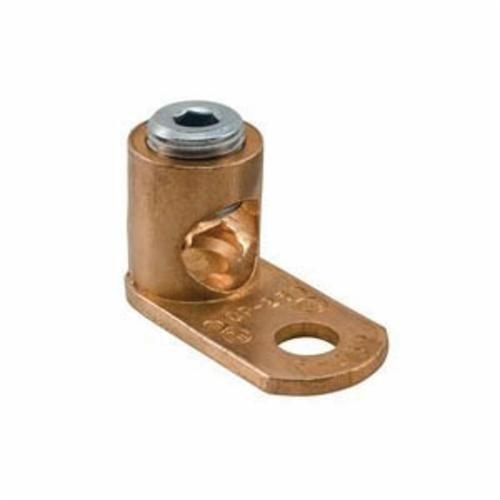

ILSCO® ClearChoice® CP-500 Type CP Compact Post Connector, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper

Selected CP-500ILSCO® ClearChoice® CP-500 Type CP Compact Post Connector, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper
CP-500ILSCO® ClearChoice® CP-500 Type CP Compact Post Connector, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper

Documents

Features

  • Re-usable
  • Range taking for reduced inventories and flexibility
  • Manufactured from high conductivity copper alloy
  • Provides long lasting reliable contact
  • Ensures reliability for copper conductor
  • Compact design saves space and reduces installation time
  • 1 stud of 1/2 in
  • 6/Pack, Standard Package

Specification

Material
Copper
Number of Bolt Holes
1
Minimum Order Qty
1
Order Interval
1
Conductor Type
Copper
Stud Size
1/2 in
Temperature Rating
90 deg C
Tongue Style
Straight
Type
Compact
Dimensions
2.9688 in L x 1.375 in W x 1.4375 in H
Conductor Size
500 kcmil to 4/0 AWG
Catalog ID
ILSCP-500
Standard & Approvals
LR-29601 CSA Certified, RoHS Compliant, UL 486A-B Listed
Tongue Size
1.781 in L x 0.281 in T
Specifications
3/8 in Hex
Series
CP
Application
For Terminating Connector
Voltage Rating
2000 VAC
