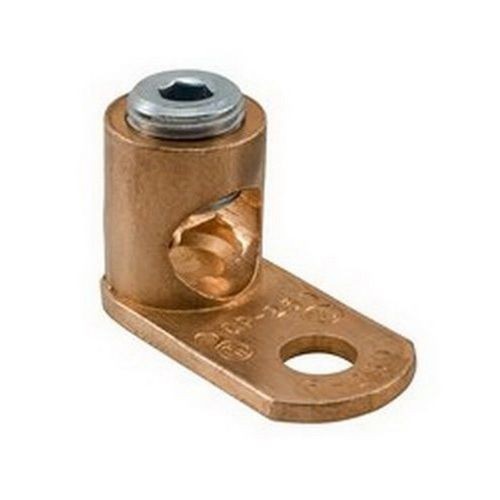

ILSCO® ClearChoice® CP-8 Type CP Compact Post Connector, 14 to 8 AWG Copper Conductor, #10 Stud, 1 Bolt Hole, Copper
ILSCO® ClearChoice® CP-8 Type CP Compact Post Connector, 14 to 8 AWG Copper Conductor, #10 Stud, 1 Bolt Hole, Copper
SKU: ILSCP-8
Manufacturer Part Number: CP-8
UPC: 783669029956
Documents
Features
- Re-usable
- Range taking for reduced inventories and flexibility
- Manufactured from high conductivity copper alloy
- Provides long lasting reliable contact
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- 1 stud of NO 10
- 100/Pack, Standard Package
Specification
| Material | Copper |
|---|---|
| Number of Bolt Holes | 1 |
| Series | CP |
| Specifications | Slotted Hex |
| Stud Size | NO 10 |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.496 in L x 0.078 in T |
| Tongue Style | Straight |
| Type | Compact |
| Voltage Rating | 2000 VAC |
| Application | For Terminating Connector |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL 486A-B Listed |
| Conductor Size | 8 to 14 AWG |
| Dimensions | 0.7969 in L x 0.375 in W x 0.4219 in H |
| Conductor Type | Copper |
