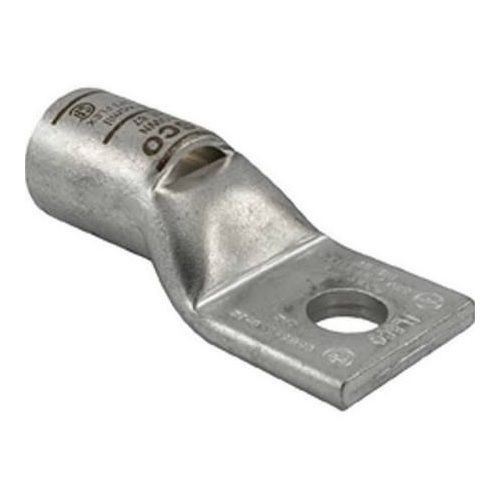

ILSCO® SureCrimp® CSWS-4/0-38 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1 to 4/0 AWG Flex Copper Conductor, Die Code: ILD-54, 3/8 in Stud, Tin Plated Copper
ILSCO® SureCrimp® CSWS-4/0-38 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1 to 4/0 AWG Flex Copper Conductor, Die Code: ILD-54, 3/8 in Stud, Tin Plated Copper
SKU: ILSCSWS-4/0-38
Manufacturer Part Number: CSWS-4/0-38
UPC: 783669639650
Features
- Manufactured from high strength seamless copper tubing, electro tin plated
- Chamfered entry
- Color coded
- Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- 1 mounting hole
- Alternate conductor size of 3/0 FLEX
- Expanded conductor size of 4/0-1 AWG
- 0.937 in L Strip, 0.406 in Dia Stud Hole
Specification
| Material | Copper |
|---|---|
| Overall Length | 2.241 in |
| Series | CSWS |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.875 in L x 0.999 in W |
| Type | 1-Hole |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Application | For Bonding, Grounding and Terminating Connector |
| Standard & Approvals | UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant |
| Conductor Size | 4/0 AWG |
| Dimensions | 0.999 in W |
| Barrel Size | 7/8 in L |
| Barrel Style | Short/Standard |
| Color Code | Purple |
| Die Code | I-54 |
