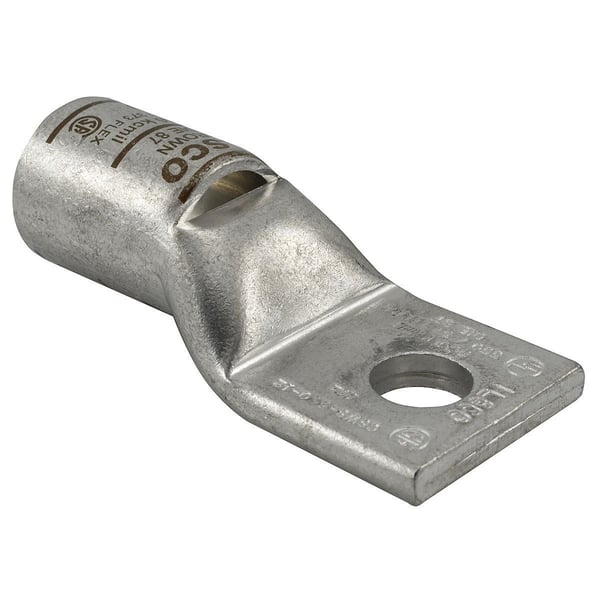

ILSCO® SureCrimp® CSWS-4-38 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 6 to 4 AWG Copper Conductor, Die Code: ILD-29, 3/8 in Stud, Tin Plated Copper
ILSCO® SureCrimp® CSWS-4-38 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 6 to 4 AWG Copper Conductor, Die Code: ILD-29, 3/8 in Stud, Tin Plated Copper
SKU: ILSCSWS-4-38
Manufacturer Part Number: CSWS-4-38
UPC: 783669630411
Documents
Features
- Manufactured from high strength seamless copper tubing, electro tin plated
- Chamfered entry
- Color coded
- Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- 1 mounting hole
- Alternate conductor size of NO 4 SOL
- Expanded conductor size of 4-6 AWG
- 0.562 in L Strip, 0.406 in Dia Stud Hole
Specification
| Material | Copper |
|---|---|
| Overall Length | 1.609 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 1/2 in |
| Barrel Style | Short/Standard |
| Catalog ID | ILSCSWS-4-38 |
| Color | Gray |
| Conductor Size | 4 AWG |
| Die Code | I-29 |
| Dimensions | 0.486 in W |
| Series | CSWS |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.875 in L x 0.486 in W |
| Type | 1-Hole |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Application | For Bonding, Grounding and Terminating Connector |
| Standard & Approvals | UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant |
