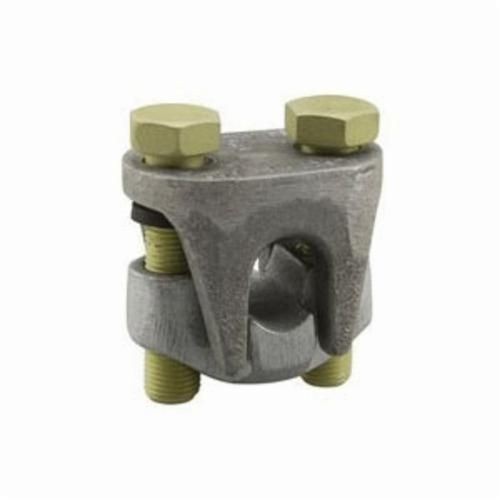

ILSCO® ClearChoice® DBA-500S Type DBA-S Dual Rated Two Bolt Connector, 350 to 500 kcmil Aluminum/Copper Conductor, Aluminum Alloy
ILSCO® ClearChoice® DBA-500S Type DBA-S Dual Rated Two Bolt Connector, 350 to 500 kcmil Aluminum/Copper Conductor, Aluminum Alloy
SKU: ILSDBA-500S
Manufacturer Part Number: DBA-500S
UPC: 783669228632
Features
- Manufactured from heat treated aluminum alloy provides maximum strength
- Wax plated provides low contact resistance
- Suitable for copper and/or aluminum conductors in any combination
- Neoprene washers hold the bolts captive and eliminates the possibility of loose hardware
- Range taking permits inventories to be kept to a minimum
- Re-usableprovides efficient use and flexibility in the field
- Spacer bar separates dissimilar metals
- 500 kcmil - 10 AWG conductor tap range
- 500 kcmil - 350 kcmil conductor main range
- 3/Pack, standard package
Specification
| Material | Aluminum Alloy |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=8dqLFkVfsS4&t=267s |
| Catalog ID | ILSDBA-500S |
| Conductor Size | 500 kcmil to 350 kcmil |
| Conductor Type | Copper/Aluminum |
| Dimensions | 2-3/4 in H x 2-1/2 in W x 1-3/4 in D |
| Finish | Wax Plated |
| Series | DBA-S |
| Type | Dual Rated |
| Voltage Rating | 600 VAC |
| Standard & Approvals | RoHS Complaint |
