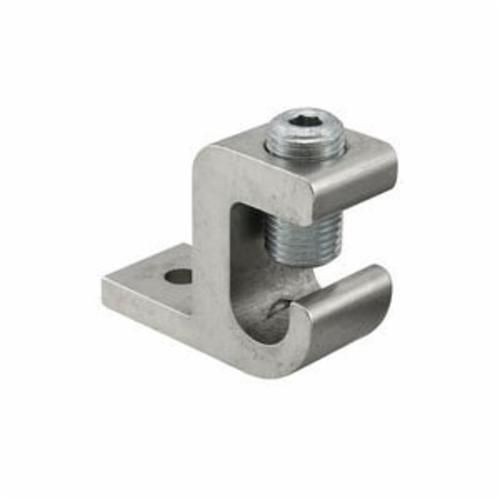

ILSCO® ClearChoice® GBL-250 Type GBL Dual Rated Lay-In Ground Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 1/4 in Stud, Aluminum Alloy, Electro-Plated Tin
ILSCO® ClearChoice® GBL-250 Type GBL Dual Rated Lay-In Ground Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 1/4 in Stud, Aluminum Alloy, Electro-Plated Tin
SKU: ILSGBL-250
Manufacturer Part Number: GBL-250
UPC: 783669960150
Documents
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Lay-in feature
- Suitable for use with either copper or aluminum conductors
- Provides low contact resistance
- GBL-4 & GBL-4SS are UL 467 listed for grounding and bonding
- GBL-1/0 & GBL-250 are UL 467 recognized for grounding and bonding
- GBL-4SS is supplied with stainless steel screw
- See Ilsco GBL-4DB for lay-in copper lug suitable for direct burial
- GBL-4SS tested to ASTM B117-09 for operating in a salt spray (fog) environment
- 7/32 in hex
Specification
| Lug Length | 1 in |
|---|---|
| Material | Aluminum Alloy |
| Stud Size | 1/4 in |
| Type | Dual Rated |
| Standard & Approvals | RU Listed, RoHS Compliant |
| Conductor Size | 6 AWG to 250 kcmil |
| Dimensions | 2-3/16 in L x 7/8 in W x 1-23/32 in H |
| Conductor Type | Copper/Aluminum |
| Finish | Electro-Tin Plated |
