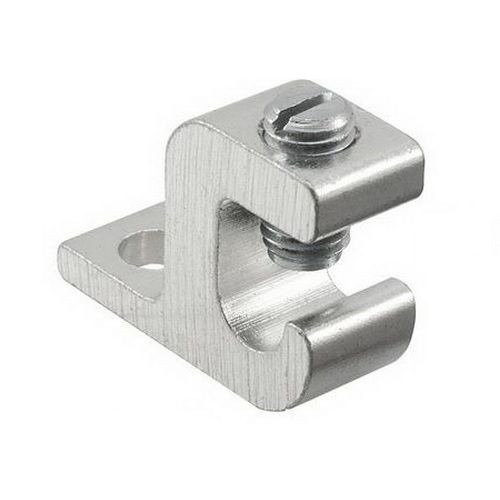

ILSCO® ClearChoice® GBL-4 Type GBL Dual Rated Lay-In Ground Lug, 14 to 4 AWG Aluminum/Copper Conductor, #10 Stud, Aluminum Alloy, Electro-Plated Tin
ILSCO® ClearChoice® GBL-4 Type GBL Dual Rated Lay-In Ground Lug, 14 to 4 AWG Aluminum/Copper Conductor, #10 Stud, Aluminum Alloy, Electro-Plated Tin
SKU: ILSGBL-4
Manufacturer Part Number: GBL-4
UPC: 783669960051
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Lay-in feature
- Suitable for use with either copper or aluminum conductors
- Provides low contact resistance
- GBL-4 & GBL-4SS are UL 467 listed for grounding and bonding
- GBL-1/0 & GBL-250 are UL 467 recognized for grounding and bonding
- GBL-4SS is supplied with stainless steel screw
- See Ilsco GBL-4DB for lay-in copper lug suitable for direct burial
- GBL-4SS tested to ASTM B117-09 for operating in a salt spray (fog) environment
- Slot hex
Specification
| Lug Length | 31/64 in |
|---|---|
| Material | Aluminum Alloy |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | ILSGBL-4 |
| Conductor Size | 14 to 4 AWG |
| Conductor Type | Copper/Aluminum |
| Dimensions | 1-3/32 in L x 25/64 in W x 51/64 in H |
| Finish | Electro-Tin Plated |
| Stud Size | 1/4 in |
| Type | Dual Rated |
| Standard & Approvals | RU Listed, RoHS Compliant |
