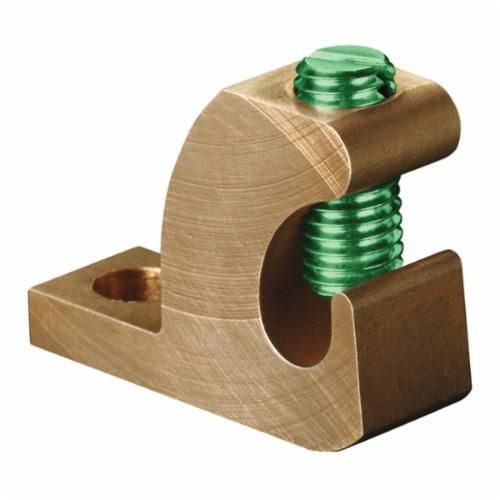

ILSCO® ClearChoice® GBL-4DB Type CGBL Direct Burial Lay-In Ground Lug, 14 to 4 AWG Copper Conductor, #10 Stud, Copper
ILSCO® ClearChoice® GBL-4DB Type CGBL Direct Burial Lay-In Ground Lug, 14 to 4 AWG Copper Conductor, #10 Stud, Copper
SKU: ILSGBL-4DB
Manufacturer Part Number: GBL-4DB
UPC: 783669960174
Documents
Features
- Manufactured from high strength copper
- Lay-in feature
- Stainless steel hardware
- Provides ease of installation of continuous loop grounding conductor
- Suitable for direct burial and for use with copper conductors
- Resists oxidation and corrosion in earth or concrete
- GBL-MH1 contains 1 each #10-32 x 3/4 bolt, nut, star washer, lock washer, flat washer} {GBL-MH2 contains 1 each #10 x 3/4 self tapping screw, star washer, lock washer, flat washer
- GBL-MH3 contains 1 each 1/4-28 x 3/4 bolt, nut, star washer, lock washer, flat washer
- GBL-MH4 contains 1 each 1/4 x 3/4 self tapping screw, star washer, lock washer, flat washer
- GBL-MHU contains 1 each 10-32 x 1/2 bolt, NO 10-32 x 3/4 bolt, nut, star washer, lock washer, flat washer
- Clear plating
- Slot screw
Specification
| Lug Length | 0.47 in |
|---|---|
| Material | Copper |
| Stud Size | NO 10 |
| Application | For grounding connector |
| Standard & Approvals | UL 467 File No E34440, CSA Certified, RoHS Compliant |
| Conductor Size | 14 to 4 AWG |
| Dimensions | 1.15 in L x 0.375 in W x 0.825 in H |
| Conductor Type | Copper |
