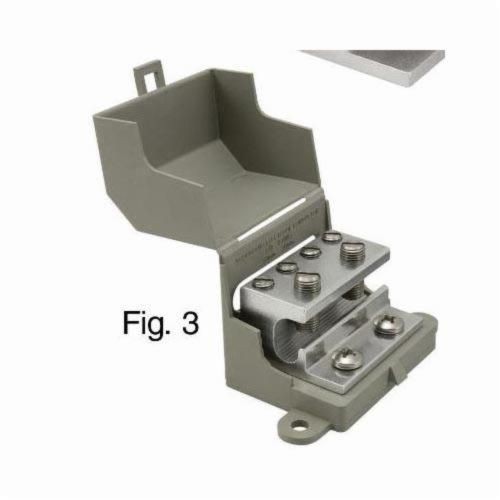

ILSCO® ClearGround® GBT-1/0-M-W/C Dual Rated Lay-In Intersystem Ground Tap, 8 to 1/0 AWG, 14 to 2 AWG Cable
ILSCO® ClearGround® GBT-1/0-M-W/C Dual Rated Lay-In Intersystem Ground Tap, 8 to 1/0 AWG, 14 to 2 AWG Cable
SKU: ILSGBT-1/0-M-W/C
Manufacturer Part Number: GBT-1/0-M-W/C
UPC: 783669000658
Documents
Features
- 2 to 14 AWG stranded-solid tap wire
- S hex size tap
- S hex size main
- Lay in style, eliminates the need to cut or splice into existing conductor
- No mounting required, allows fast simple installation on ground conductor below meter
- Stainless steel screws for corrosion resistance
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Size | 1/0 to 8 AWG |
| Catalog ID | ILSGBT-1/0-M-W/C |
| Dimensions | 2.1 in L x 2.67 in W x 2.1 in H |
| Series | GBT |
| Type | Lay-In |
| Application | Bonding Multiple Communication Systems Like Phone, TV and Cable |
| Standard & Approvals | UL 667P Listed, CSA Certified, RoHS Compliant |
