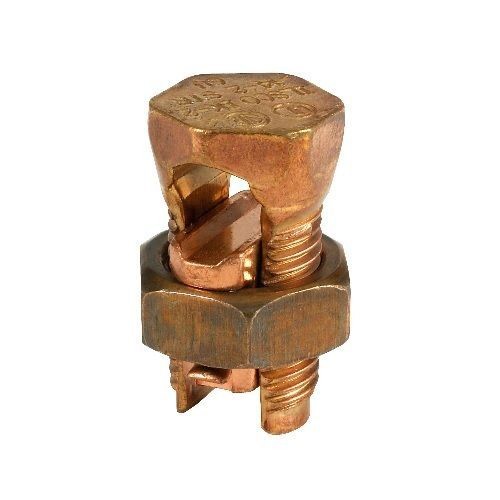

ILSCO® ClearChoice® IK-3/0 Type IK Split Bolt Connector, 2 to 3/0 AWG, 12 to 3/0 AWG Compact/Compressed/Concentric/Solid Copper Conductor, 7/8 x 2 in, Copper Alloy
ILSCO® ClearChoice® IK-3/0 Type IK Split Bolt Connector, 2 to 3/0 AWG, 12 to 3/0 AWG Compact/Compressed/Concentric/Solid Copper Conductor, 7/8 x 2 in, Copper Alloy
SKU: ILSIK-3/0
Manufacturer Part Number: IK-3/0
UPC: 783669470161
Documents
Features
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- Precision tooled threads allows maximum torque to be applied
- For use with copper conductor types solid, compact, compressed, concentric
- Suitable for direct burial in earth and concrete
- Application versatility
- 7 x 7 AWG stranded for maximum conductor copperweld
- 12 AWG solid conductor range min tap with one max main
- 0.258 - 0.47 in wire dia
- 3/0 AWG stranded - 2 AWG solid conductor range for equal run and tap
- Proper high voltage spacing and insulation techniques must be used
- 25/Pack, standard package
Specification
| Material | Copper Alloy |
|---|---|
| Series | IK |
| Specifications | 0.466 in Split, 1-1/8 in Hex Nut, 500 in lb Recommended Torque |
| Temperature Rating | 90 deg C |
| Voltage Rating | 2000 VAC |
| Application | For Circuits Rated 35 kV or Less |
| Standard & Approvals | CSA Certified, RoHS Complaint, RUS Accepted, UL 467 Listed |
| Dimensions | 1-1/8 in H x 2 in W |
| Bolt Size | 2 in x 7/8 in |
| Conductor Type | Solid/Compact/Compressed/Concentric Copper |
| Conductor Size | 3/0 to 2 AWG |
