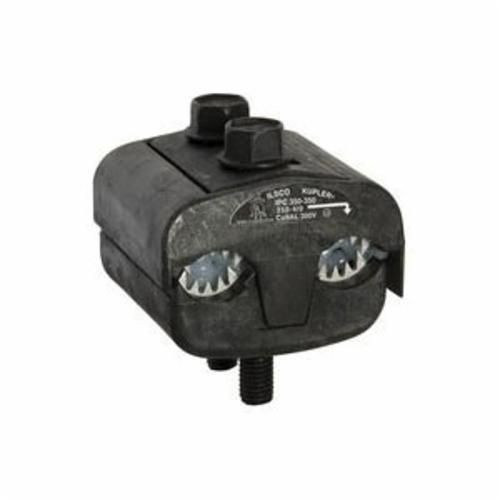

ILSCO® KUP-L-Tap® IPC-350-350 Type IPC Dual Rated Insulation Piercing Connector, 4/0 AWG to 350 kcmil Aluminum/Copper Conductor, 5/8 in, Copper
ILSCO® KUP-L-Tap® IPC-350-350 Type IPC Dual Rated Insulation Piercing Connector, 4/0 AWG to 350 kcmil Aluminum/Copper Conductor, 5/8 in, Copper
SKU: ILSIPC-350-350
Manufacturer Part Number: IPC-350-350
UPC: 783669532760
Features
- Body is molded from tough, resilient glass-filled nylon, provides high degree of breakage resistance and long dependable use
- Compact design saves space
- Tin-plated copper contact teeth, easily penetrates most types of insulation
- Insulation piercing, no need to strip the conductor which saves installation time
- Perforated end tabs, break out easily by hand
- Pre-filled with silicone lubricant, prevents oxidation and moisture from entering the contact area
- Versatile, can be used as a splice or tap connector
- Increased safety, contains no external energized parts, can be installed “hot” on energized conductors providing tap conductor is not under load
- Horizontal line grid, provides a visual guide for proper installation of conductors
- For use with stranded conductor Class B or C
- 300 V (480 grounded Y system)
- 350 kcmil - 4/0 AWG tap/secondary
- 4/Pack
Specification
| Material | Copper |
|---|---|
| Series | IPC |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 300 VAC |
| Standard & Approvals | CSA Certified, RoHS Compliant, UL 453G, UL 486A/B, UL E6207 Listed |
| Color | Black |
| Conductor Type | Aluminum/Copper |
| Finish | Tin Plated |
| Bolt Size | 5/8 in Hex |
| Conductor Size | 350 kcmil to 4/0 AWG |
| Specifications | 25 ft lb Torque, 350 A Copper, 280 A Aluminum |
| Dimensions | 3-1/4 in H x 2-23/32 in W |
