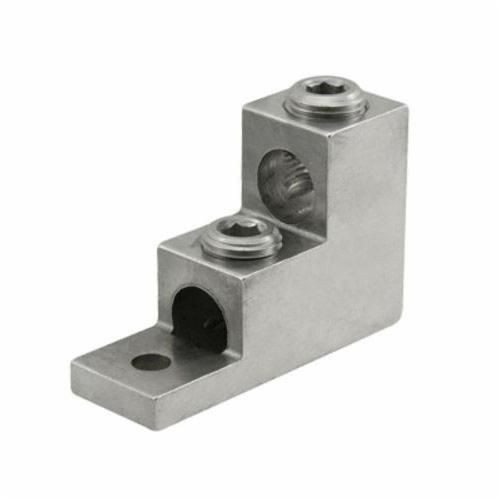

ILSCO® ClearChoice® PB2-300 Type PB Dual Rated Panelboard Stack Lug, 6 AWG to 300 kcmil, 5/16 in Bolt/Stud, For Use With Aluminum or Copper Conductor
ILSCO® ClearChoice® PB2-300 Type PB Dual Rated Panelboard Stack Lug, 6 AWG to 300 kcmil, 5/16 in Bolt/Stud, For Use With Aluminum or Copper Conductor
SKU: ILSPB2-300
Manufacturer Part Number: PB2-300
UPC: 783669184204
Documents
Features
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Stacked design
- Manufactured from high strength 6061-T6 aluminum alloy
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Saves space and reduces installation time
- 1 in L x 1 in W x 5/16 in T straight tongue
- 90 deg C temperature range
- 1 stud of 5/16 in
- 3/Pack, Standard Package
Specification
| Material | Aluminum |
|---|---|
| Standard & Approvals | CSA Certified, RoHS Compliant, UL E6207, UL 486A/B Listed |
| Application | For Terminating Connector |
| Type | Dual Rated |
| Series | PB |
| Finish | Electro-Tin Plated |
| Length | 3 in |
