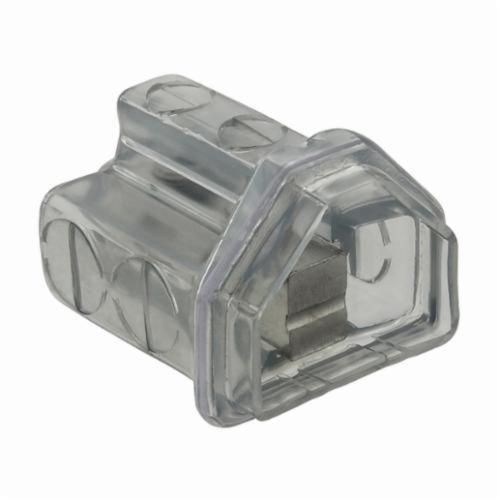

ILSCO® ClearTap® PCT-8-350 Type PCT 8-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
ILSCO® ClearTap® PCT-8-350 Type PCT 8-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
SKU: ILSPCT-8-350
Manufacturer Part Number: PCT-8-350
UPC: 783669700626
Features
- 8 ports
- Broad wire range 800kcmil - 14 AWG
- Dual rated
- Transparent flexible insulating cover
- Ensures reliability
- No taping and fully insulated yet allows visual inspection
- Provides greater versatility
- Reduces inventory
- Self-closing openings
- Access from both sides of connector
- Incoming and outgoing conductors must be staggered
- No wasted time finding screws
- No lost or loose caps and plugs
- Captive pressure screws
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=SXIDc-w-v9U&t=6s |
| Catalog ID | ILSPCT-8-350 |
| Conductor Type | Aluminum/Copper |
| Dimensions | 9.68 in L x 2.69 in W x 2.65 in H |
| Specifications | 5/16 in Hex |
| Temperature Rating | -45 to 90 deg C |
| Type | Type PCT |
| Voltage Rating | 600 VAC |
| Application | For Copper or Aluminum Conductor |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL 453G, UL 486A/B, UL E6207 Listed |
